XIAOMA / AUXILIARY SYSTEMS
CONVEYINGConveyor systems
Connect feeding and discharge stages with conveying arrangements suited to the material and line layout.
Discuss your material↗
PLASTIC RECOVERY SYSTEMSXIAOMA ↗

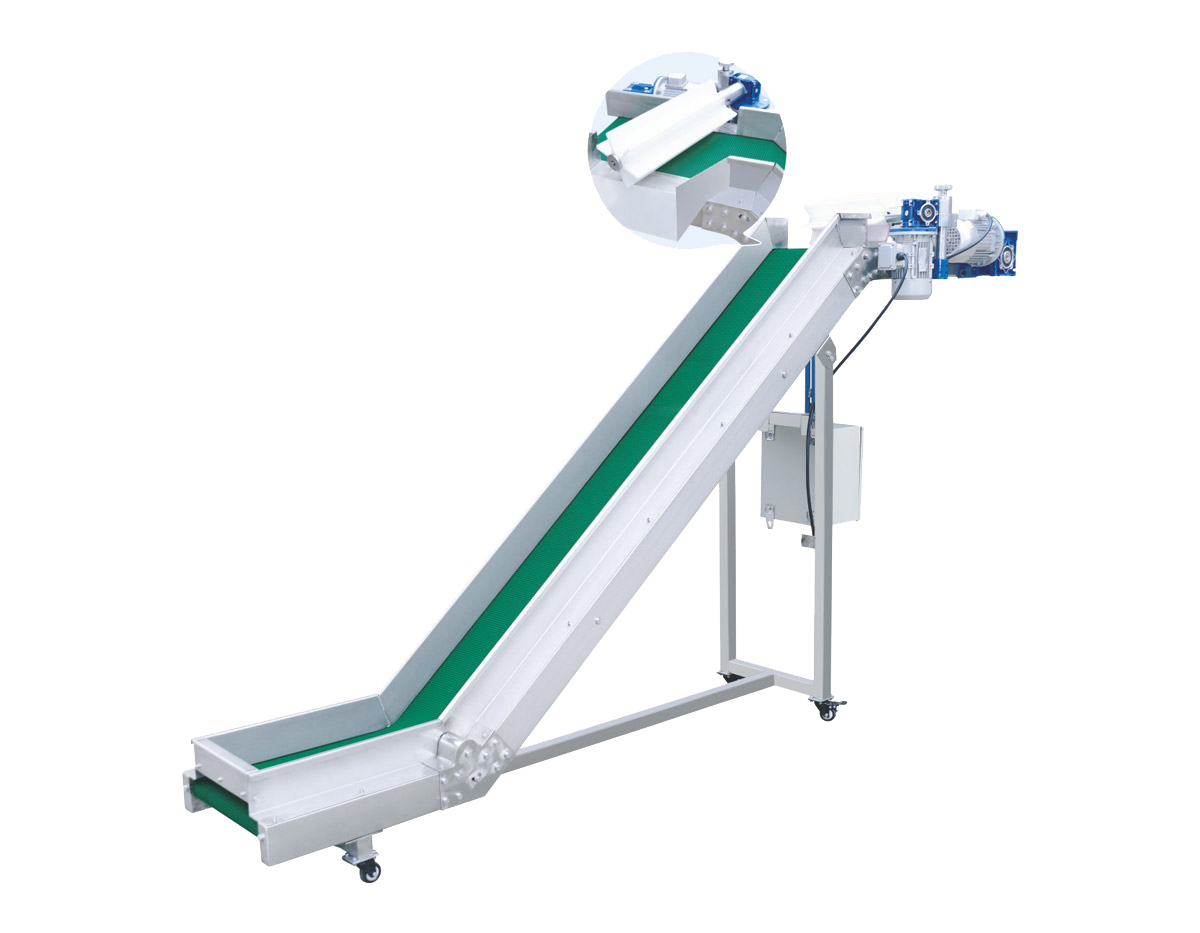

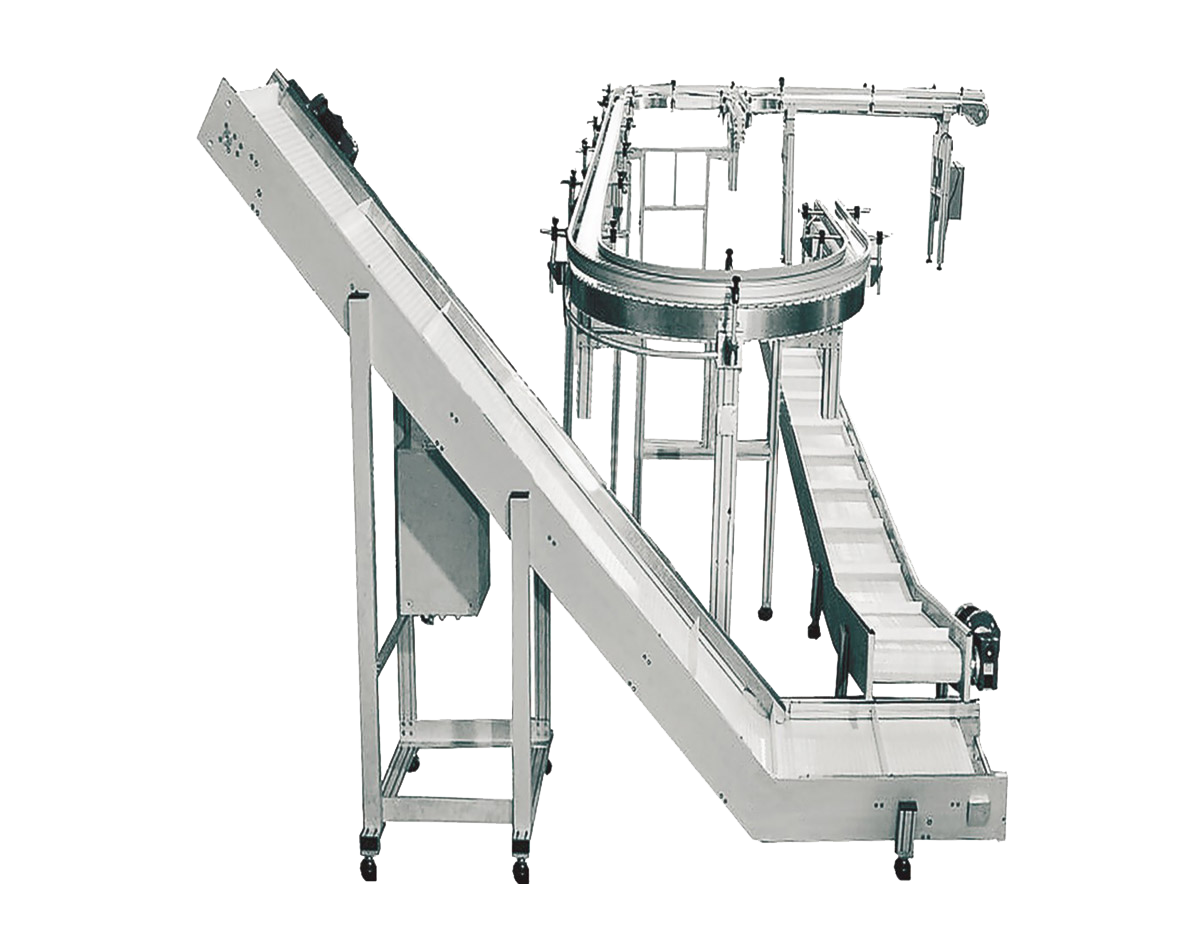

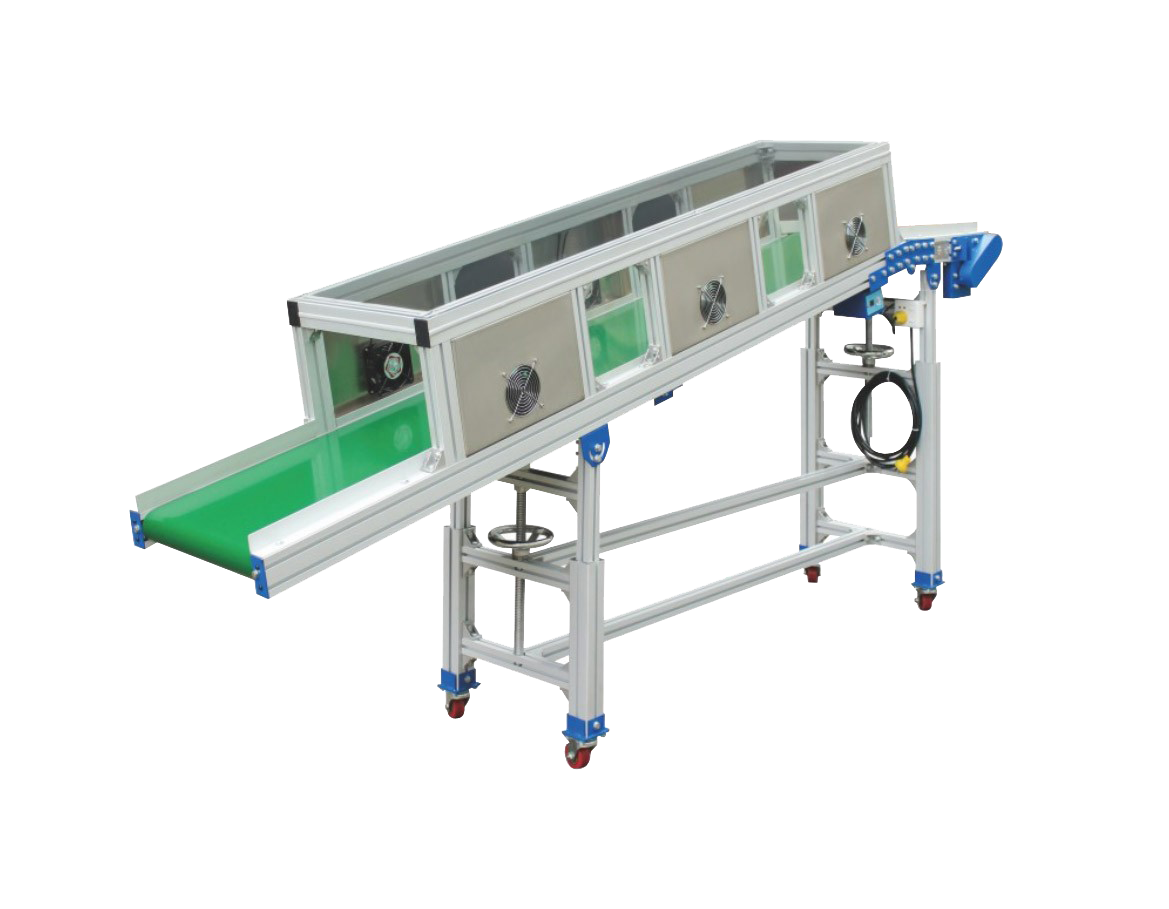

01 / EQUIPMENT VIEWS
A closer look
Equipment appearance and accessories vary with configuration.
02 / DESIGN & APPLICATION
Design and
application features
Xiaoma conveyors transfer material between plastic granulation and recovery stages. Discuss belt width, length, material and inclination in relation to feed size, weight, transfer height and the installation layout.
Belt material
Choose the belt material around feed form, temperature and cleaning needs.
Process connections
Coordinate height, direction and feed rate with granulation and collection.
Maintenance access
Allow access for cleaning, tension adjustment and routine inspection.
03 / CONFIGURATION
Plan the configuration
Material
Resin, shape, dimensions and temperature
Installation
Transfer route, equipment connections and available space
Configuration
Discuss the arrangement using material and site information
LET’S DISCUSS YOUR PROCESS
Discuss equipment options
Share the material, feed dimensions and recovery requirements.
