Single-shaft rotor
Rotor and stationary cutters work together. Select cutter material around the feed and wear conditions.
XIAOMA / MATERIAL RECOVERY
S SERIESSingle-shaft shredder
A first reduction stage for bulky materials, connected with downstream granulation, conveying and recovery.
Discuss your material↗
PLASTIC RECOVERY SYSTEMSXIAOMA ↗
01 / EQUIPMENT VIEWS

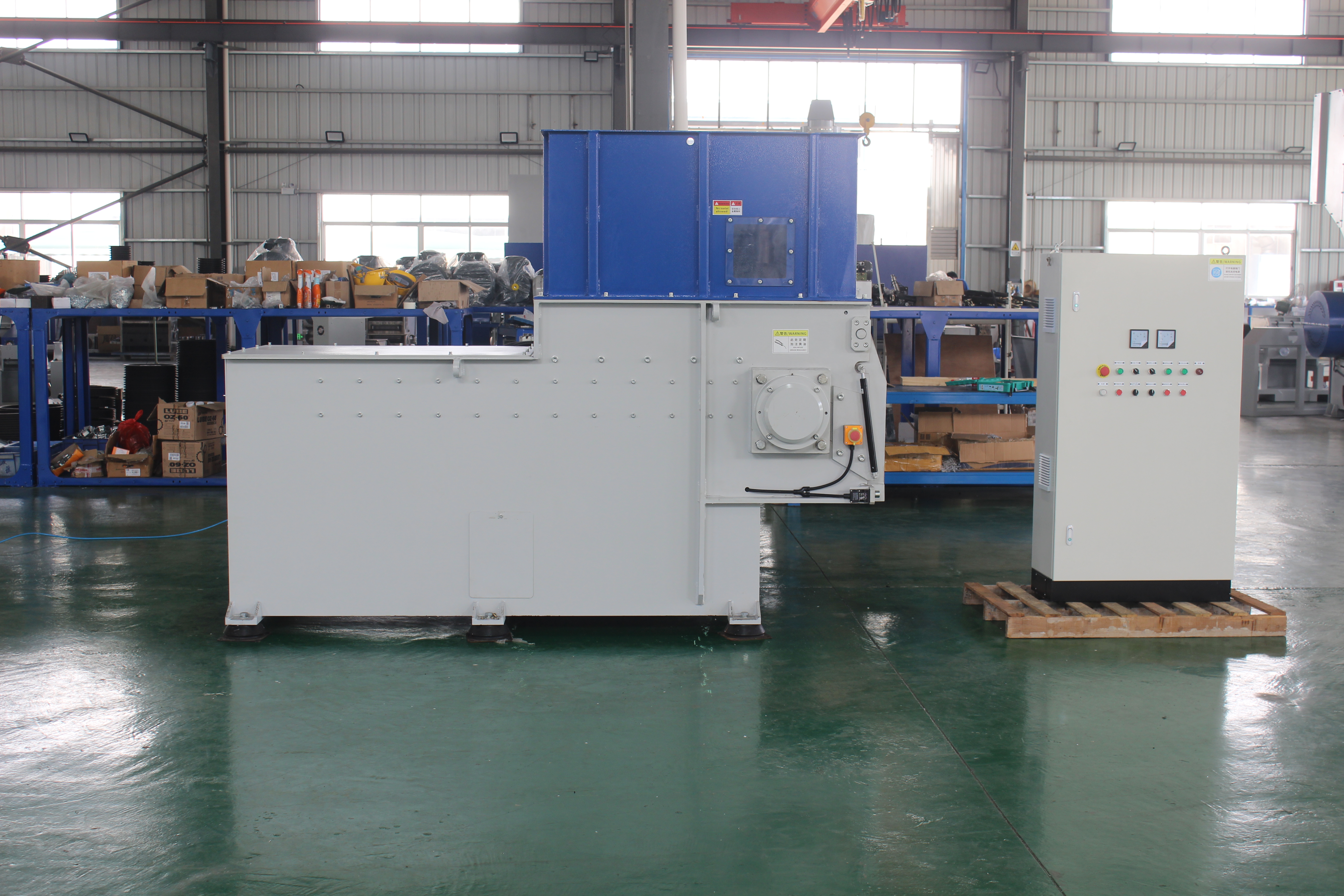

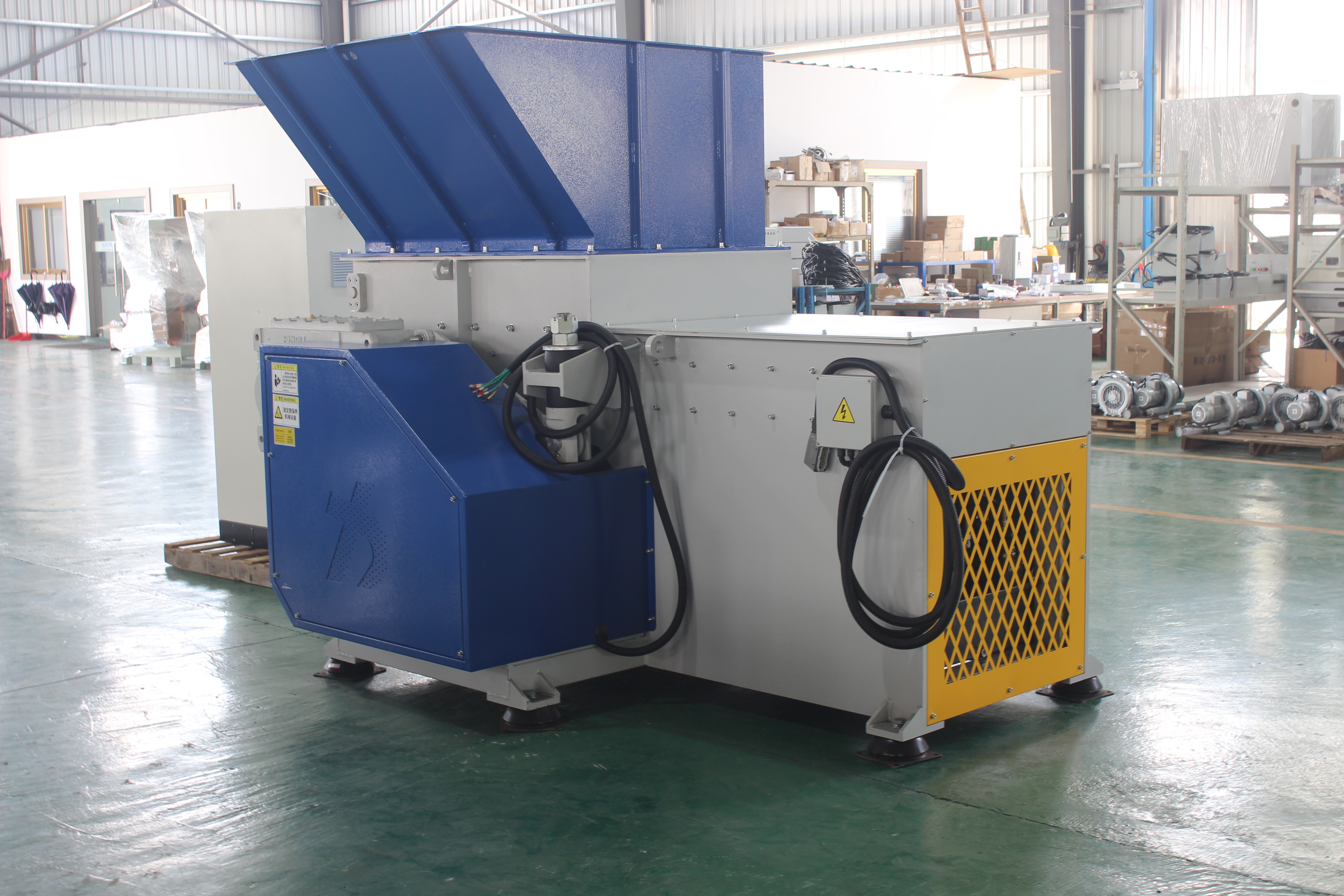

A closer look
Equipment appearance and accessories vary with configuration.
02 / DESIGN & APPLICATION
Design and
application features
The S series combines a slow-speed rotor, hydraulic pusher and screen for preliminary reduction of bulky plastic and selected other materials. Configure cutters, screen, power and controls around the material form and downstream process.
Hydraulic pusher
A hydraulic pusher feeds the rotor, with stroke and power varying by model.
Screen selection
Match the screen to the next reduction stage and check output size distribution through material trials.
Line integration
Coordinate conveyors and downstream granulators with feeding, discharge and maintenance access.
03 / SPECIFICATIONS
Technical specifications
Scroll or swipe to compare models
| Model | S 600 | S 800 | S 1000 | S 1200 | S 1400 | S 1500 | S 1600D | S 2000D | S 2500D |
|---|---|---|---|---|---|---|---|---|---|
| Drive power (kW) | 18.5 | 37 | 45 | 55 | 75 | 75 | 75*2 | 90*2 | 110*2 |
| Hydraulic power (kW) | 1.5 | 3.75 | 3.75 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 11 |
| Rotational Speed (rpm) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| Number of rotating knives | 23+4 | 35+4 | 45+4 | 55+4 | 70+4 | 78+4 | 94+4 | 114+4 | 144+4 |
| Number of fixed knives | 2+2 | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 |
| Rotor Diameter (mm) | 225 | 400 | 400 | 400 | 400 | 400 | 480 | 480 | 480 |
| Rotor working width (mm) | 600 | 800 | 1000 | 1200 | 1400 | 1500 | 1600 | 2000 | 2500 |
| Feed inlet size (mm) | 1210*1210 | 1420*1500 | 1420*1700 | 1420*1900 | 1420*2100 | 1430*2102 | / | / | / |
| Pusher Stroke (mm) | 500 | 800 | 800 | 800 | 800 | 815 | 950 | 950 | 950 |
| Discharge Height (mm) | 480 | 560 | 560 | 560 | 560 | 560 | 850 | 850 | 850 |
| Screen aperture (mm) | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| Weight (kg) | 1800 | 3800 | 4570 | 5800 | 6300 | 7254 | 11000 | 13000 | 16000 |
| Dimensions (L*W*H mm) | 1780*1290*1690 | 2670*1760*2090 | 2670*1960*2090 | 2670*2500*2090 | 2670*2810*2140 | 2800*2750*2133 | 3350*4000*2650 | 3350*4600*2650 | 3350*5200*2650 |
Supplied specifications are a selection reference. Confirm the model and configuration in the project documents. Capacity and noise depend on material and operating conditions.
