Staggered rotor
Rotor knives engage progressively, with a V-shaped arrangement guiding material into the cutting area.
XIAOMA / MATERIAL RECOVERY

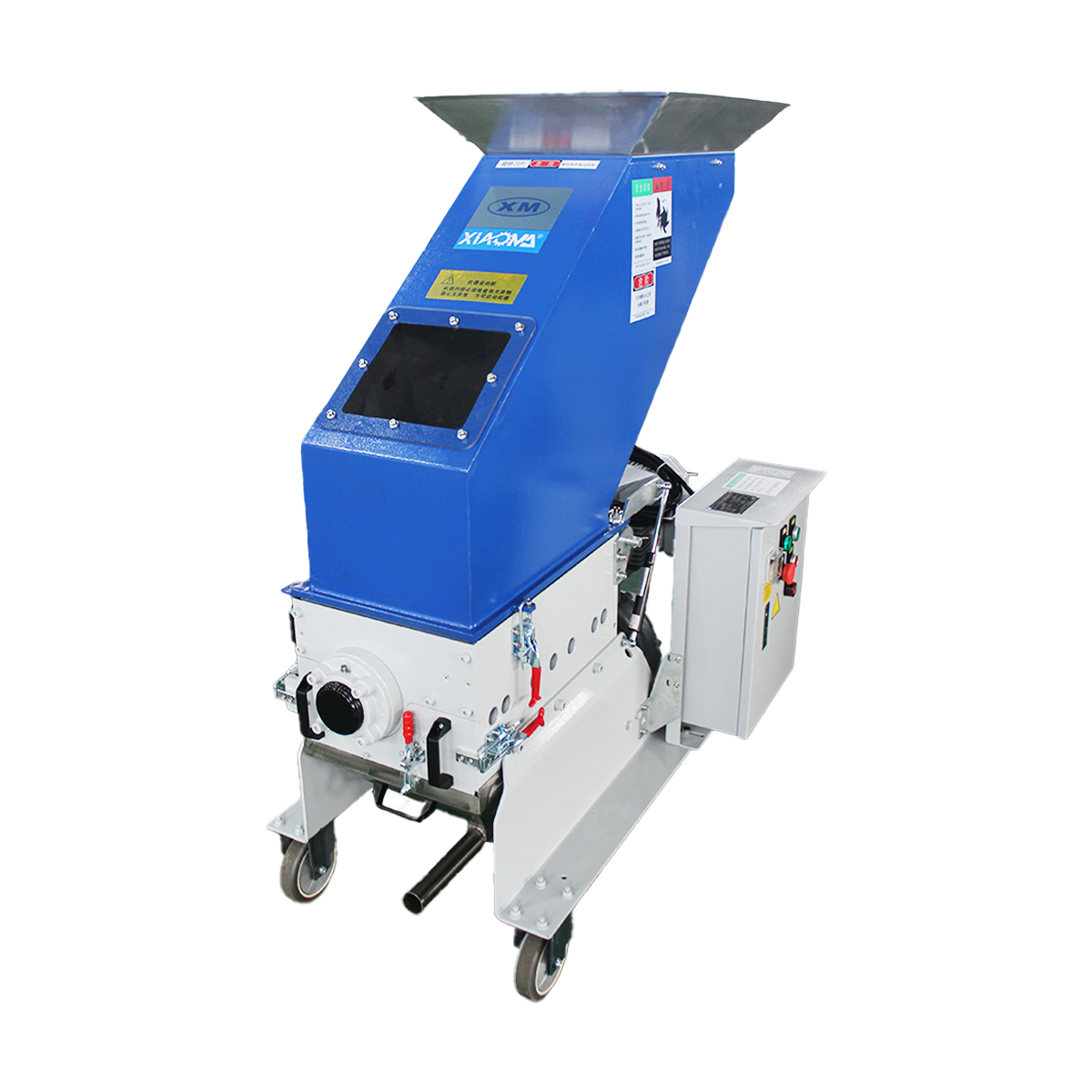

XMG180Low-speed granulator
Beside-the-press recovery for sprues and small plastic parts, with low-speed cutting and a choice of collection arrangements.
Discuss your material↗
PLASTIC RECOVERY SYSTEMSXIAOMA ↗
01 / EQUIPMENT VIEWS

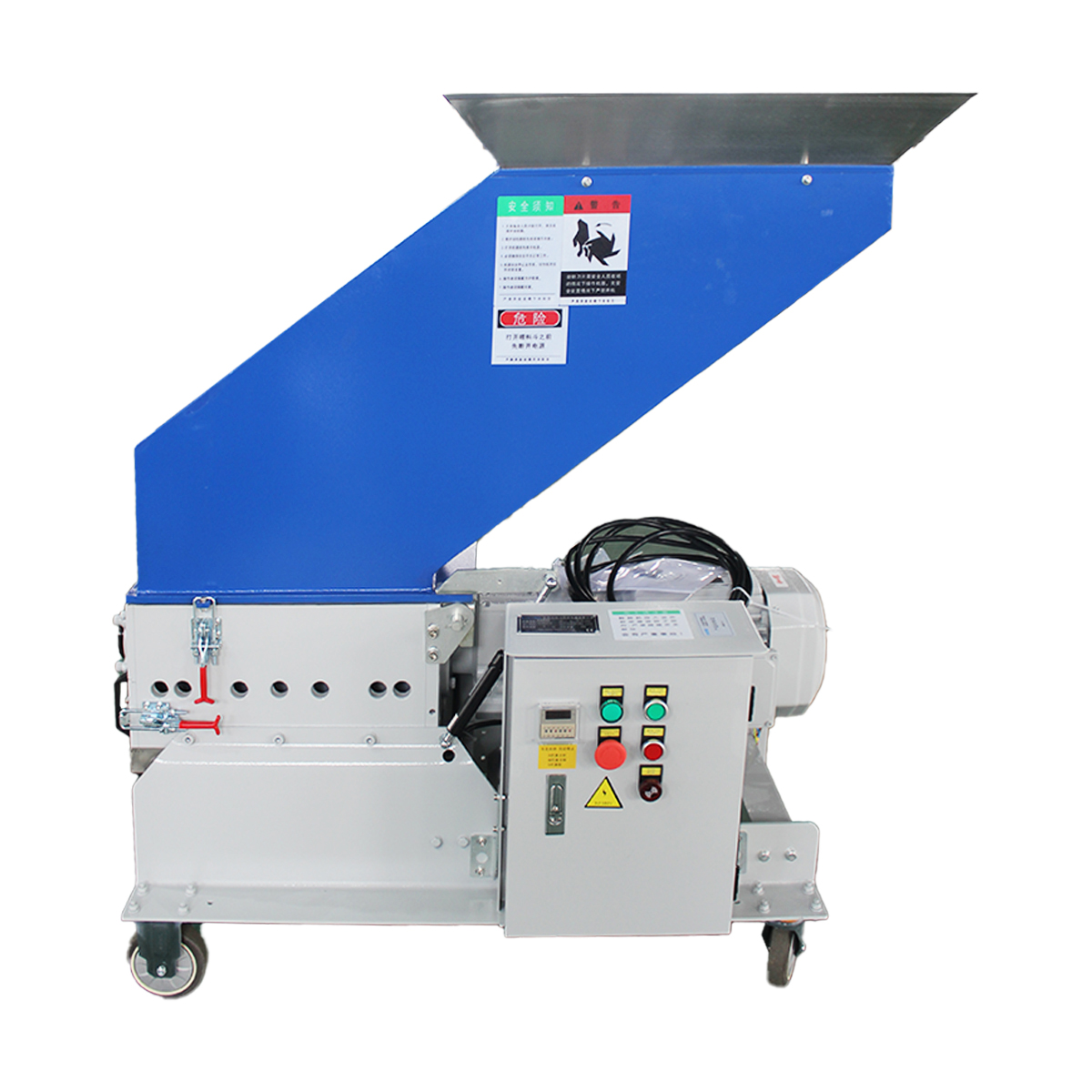

A closer look
Equipment appearance and accessories vary with configuration.

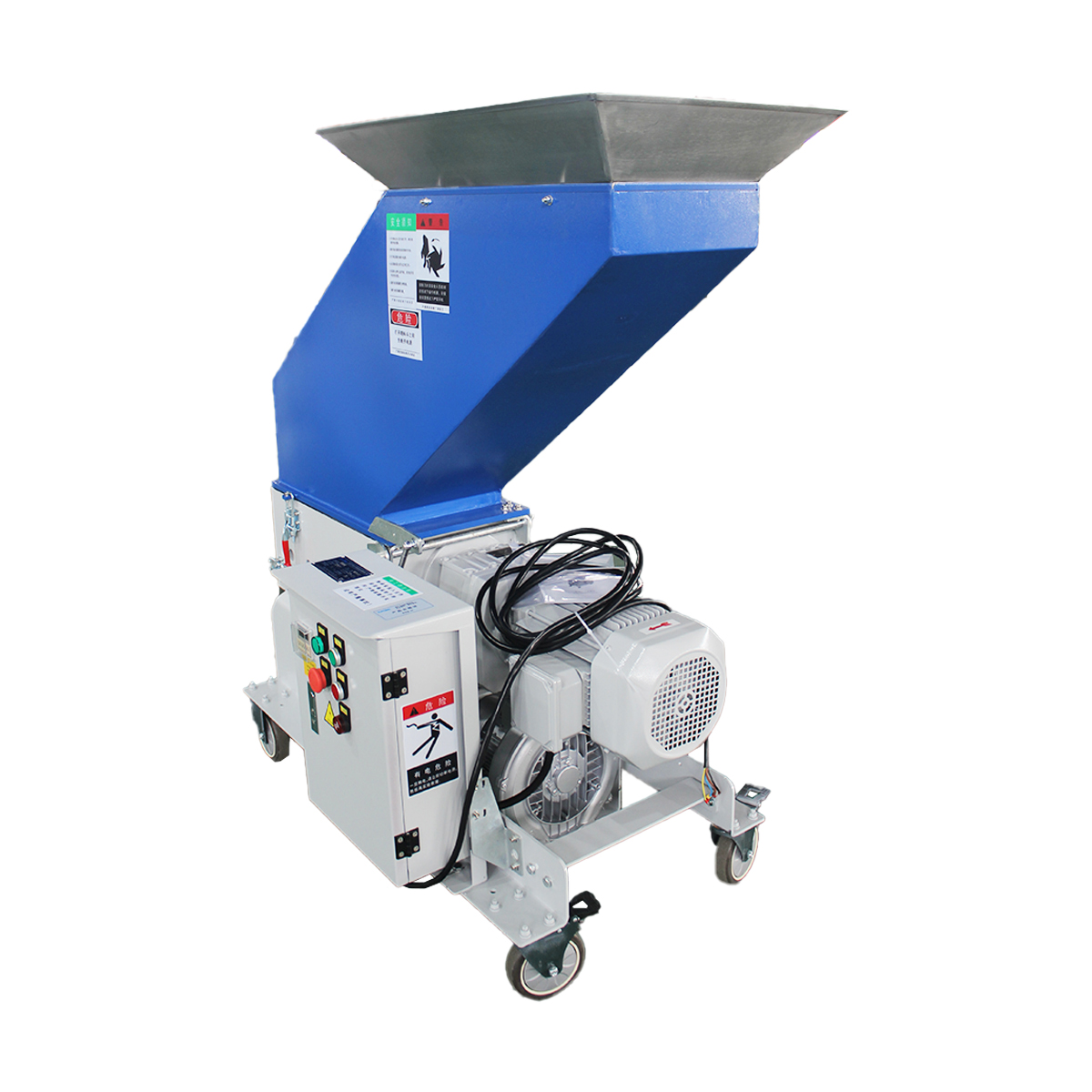

02 / DESIGN & APPLICATION
Design and
application features
The XMG180 series granulates sprues and selected rejected parts from plastic moulding. Its staggered rotor knives form a V-shaped arrangement. Choose the model around material size and the moulding cycle, with a blower, collection tray or suction connection as required.
Low-speed cutting
Designed for recovery beside the press; check material toughness and filler content during selection.
Collection options
Discuss a blower, collection tray or suction connection to suit the existing recovery process.
Maintenance access
Inspect knife clearances, wear and fasteners, and plan cleaning in line with the equipment manual.
03 / SPECIFICATIONS
Technical specifications
Scroll or swipe to compare models
| Model | XMG 180/120 | XMG 180/180 | XMG 180/300 | XMG 180/430 | XMG 250/430 |
|---|---|---|---|---|---|
| Drive power (kW) | 2.2 | 3 | 4 | 4 | 4 |
| Rotational Speed (rpm) | 120 | 120 | 120 | 120 | 120 |
| Number of rotating knives | 12 | 18 | 30 | 45 | 33 |
| Number of fixed knives | 2(4 edges) | 2(4 edges) | 2(4 edges) | 2(4 edges) | 2(4 edges) |
| Rotor Diameter (mm) | 180 | 180 | 180 | 180 | 250 |
| Rotor working width (mm) | 120 | 180 | 300 | 430 | 430 |
| Feed inlet size (mm) | 420*450 | 450*450 | 465*550 | 465*715 | 535*700 |
| Cutting chamber size (mm) | 275*120 | 275*180 | 275*290 | 275*430 | 345*430 |
| Screen aperture | 6 | 6 | 6 | 6 | 6 |
| Weight (kg) | 150 | 180 | 220 | 280 | 350 |
| Dimensions (L*W*H mm) | 830*550*1220 | 870*550*1220 | 950*550*1220 | 1100*620*1420 | 1100*720*1450 |
Supplied specifications are a selection reference. Confirm the model and configuration in the project documents. Capacity and noise depend on material and operating conditions.
