Near-horizontal feeding
The hopper accommodates long materials; confirm the required handling space before installation.
XIAOMA / MATERIAL RECOVERY

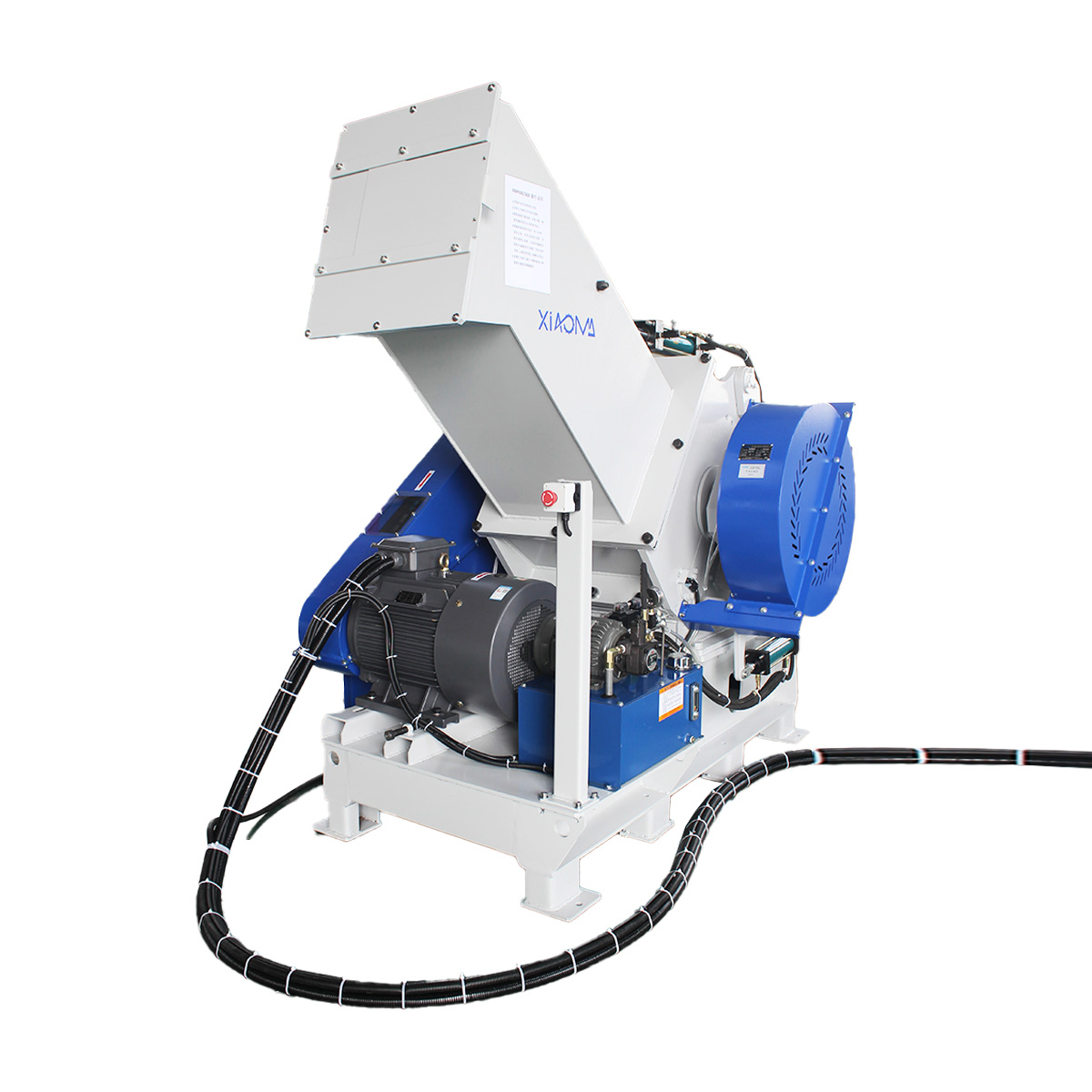

XMPPipe & profile granulator
A near-horizontal feed hopper shaped around the length, section and feeding space of pipes and profiles.
Discuss your material↗
PLASTIC RECOVERY SYSTEMSXIAOMA ↗
01 / EQUIPMENT VIEWS

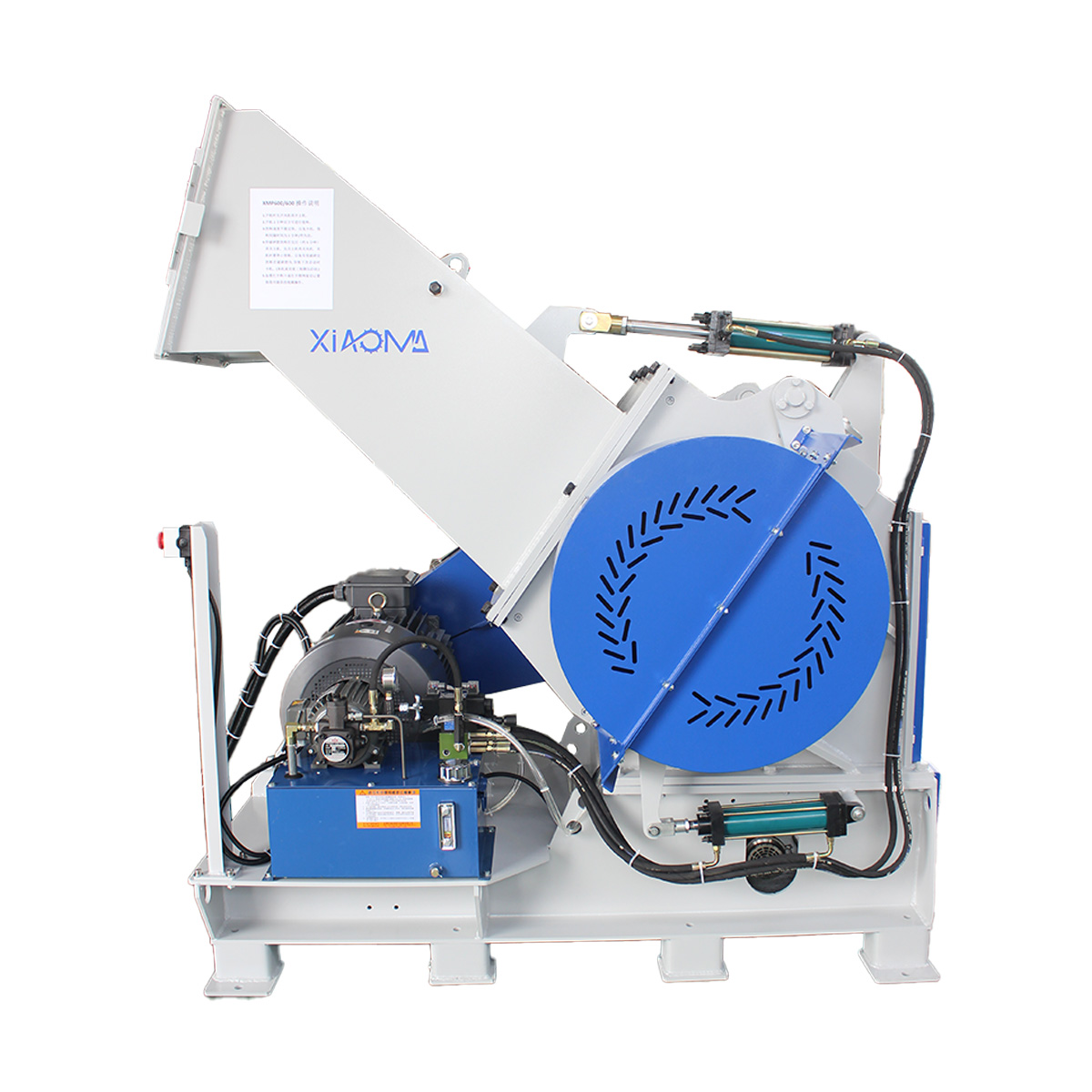

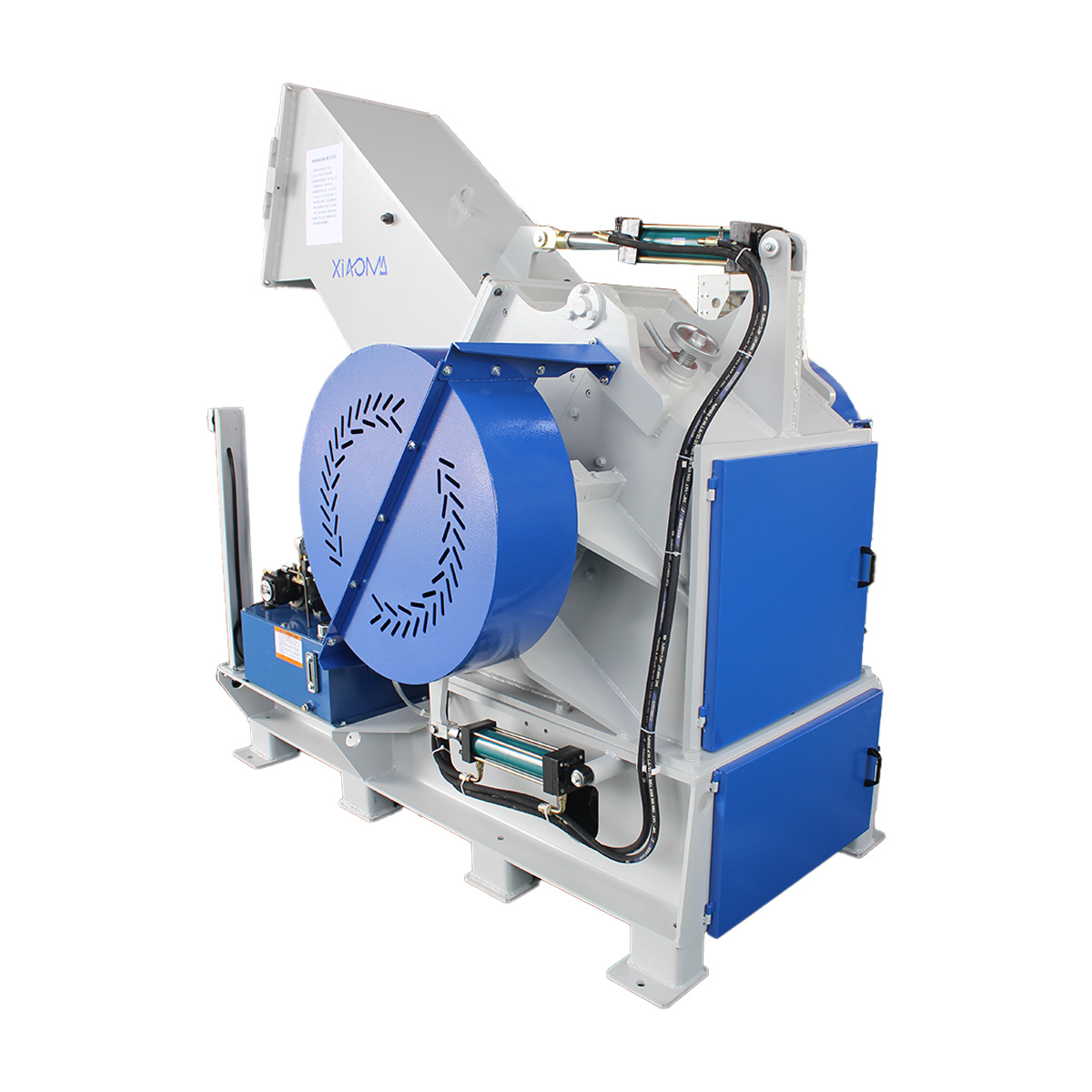

A closer look
Equipment appearance and accessories vary with configuration.
02 / DESIGN & APPLICATION
Design and
application features
The XMP series granulates plastic pipes and profiles using a near-horizontal hopper, V-shaped cutting and outboard rotor bearings. Rotor and feed-opening dimensions vary by model. Select around material section, length, wall thickness and installation requirements.
Rotor and feed arrangement
The rotor geometry works with the pipe or profile feed. Follow the specified feeding method.
Outboard bearings
Rotor bearings are located outside the chamber for scheduled inspection and maintenance.
V-shaped cutting
Match knives and the screen to the target output, then verify with representative material.
03 / SPECIFICATIONS
Technical specifications
Scroll or swipe to compare models
| Model | XMP 600/600 | XMP 600/800 | XMP 600/1000 |
|---|---|---|---|
| Drive power (kW) | 37 | 45 | 55 |
| Number of rotating knives | 5*2 | 5*2 | 5*2 |
| Number of fixed knives | 2*1 | 2*2 | 2*2 |
| Rotor Diameter (mm) | 600 | 600 | 600 |
| Rotor working width (mm) | 600 | 800 | 1000 |
| Feed inlet size (mm) | 500*430 | 680*430 | 900*430 |
| Cutting chamber size (mm) | 600*560 | 800*560 | 1000*560 |
| Screen aperture (mm) | 12 | 12 | 12 |
| Weight (kg) | 3000 | 3500 | 4500 |
| Dimensions (L*W*H mm) | 2300*1500*2100 | 2300*1700*2100 | 2450*2000*2200 |
Supplied specifications are a selection reference. Confirm the model and configuration in the project documents. Capacity and noise depend on material and operating conditions.
