Scissor-action knives
Rotor and stationary knives work together; check material suitability using representative samples.
XIAOMA / MATERIAL RECOVERY

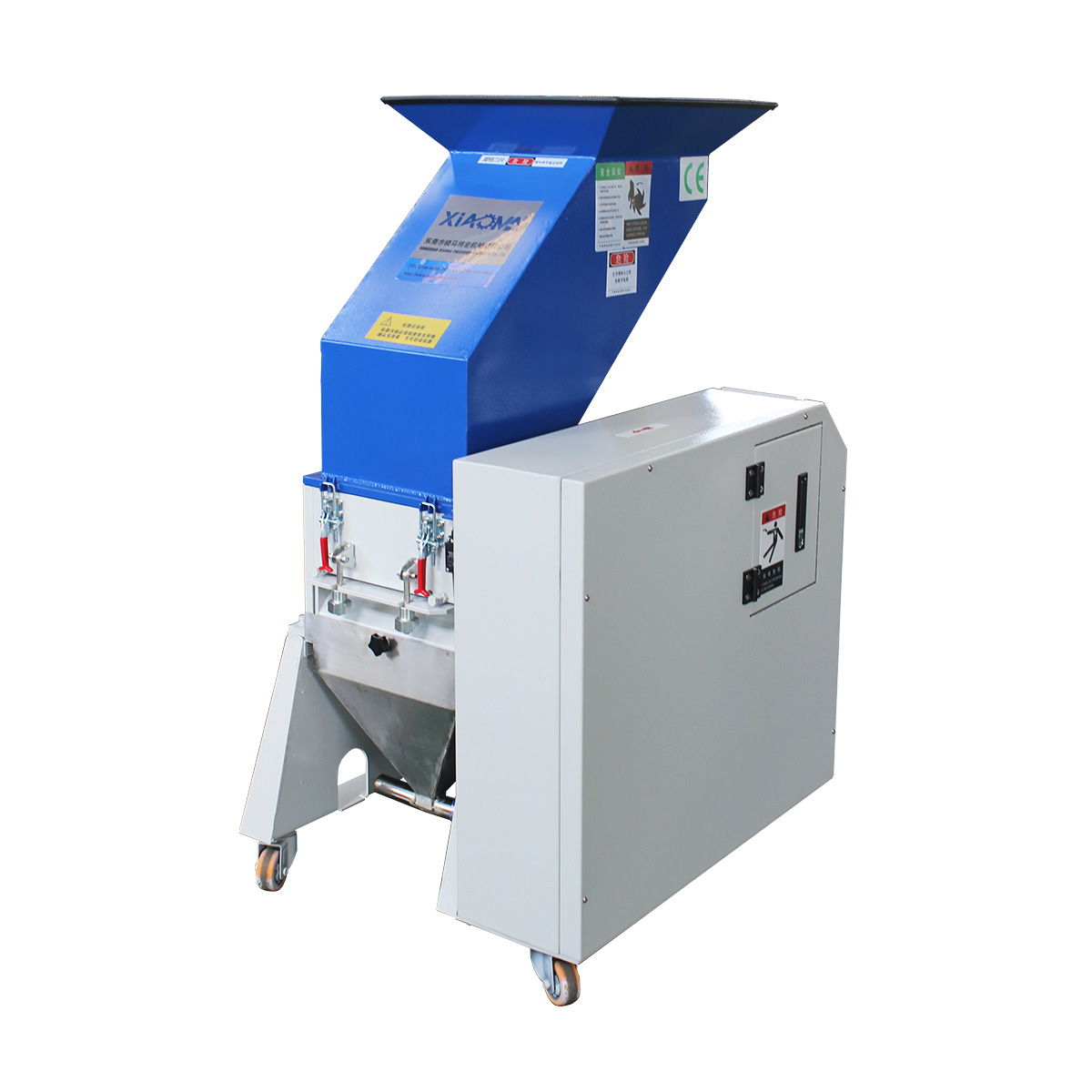

XMJMedium-speed granulator
Scissor-action cutting and an acoustic enclosure for recovery of plastic moulding scrap beside the press.
Discuss your material↗
PLASTIC RECOVERY SYSTEMSXIAOMA ↗

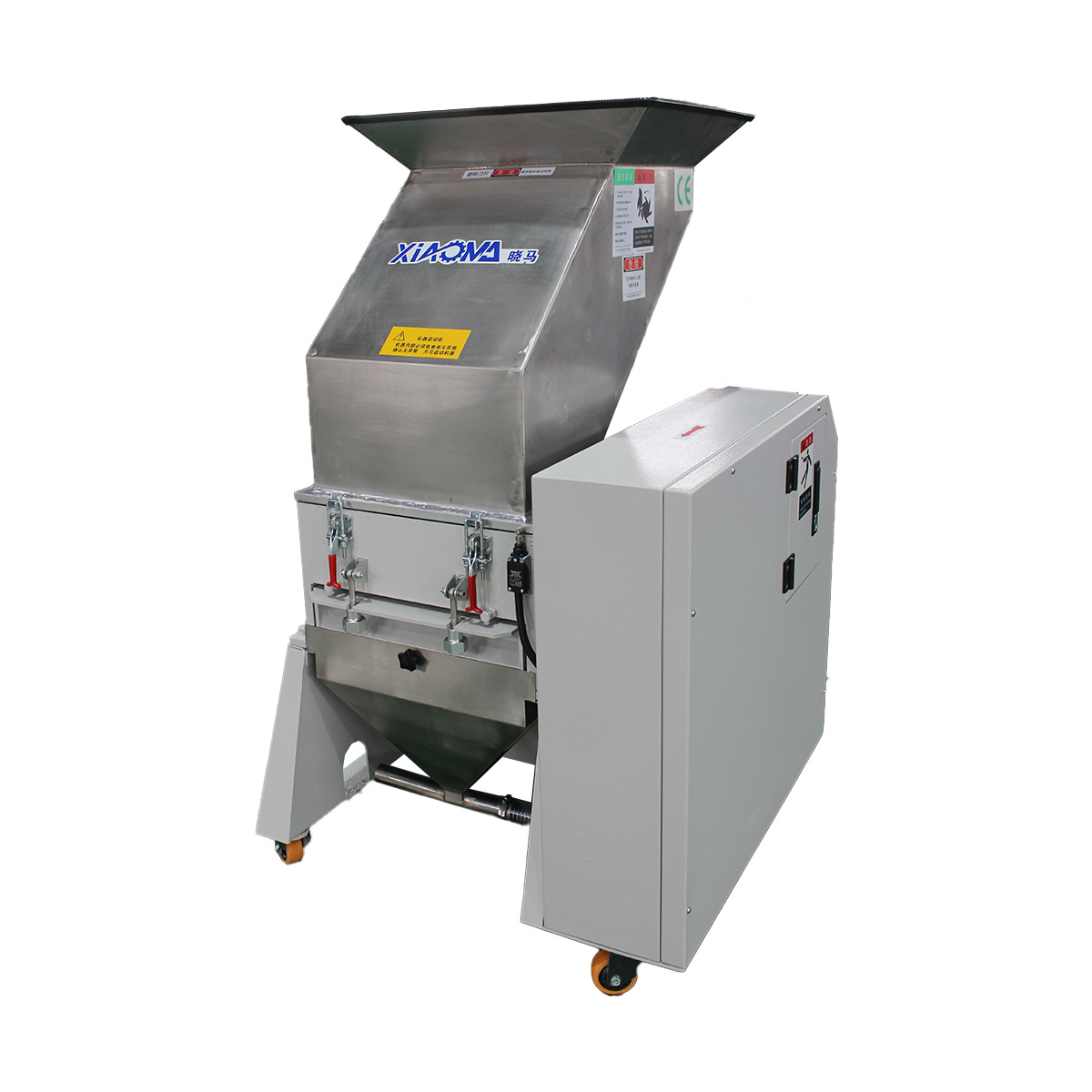

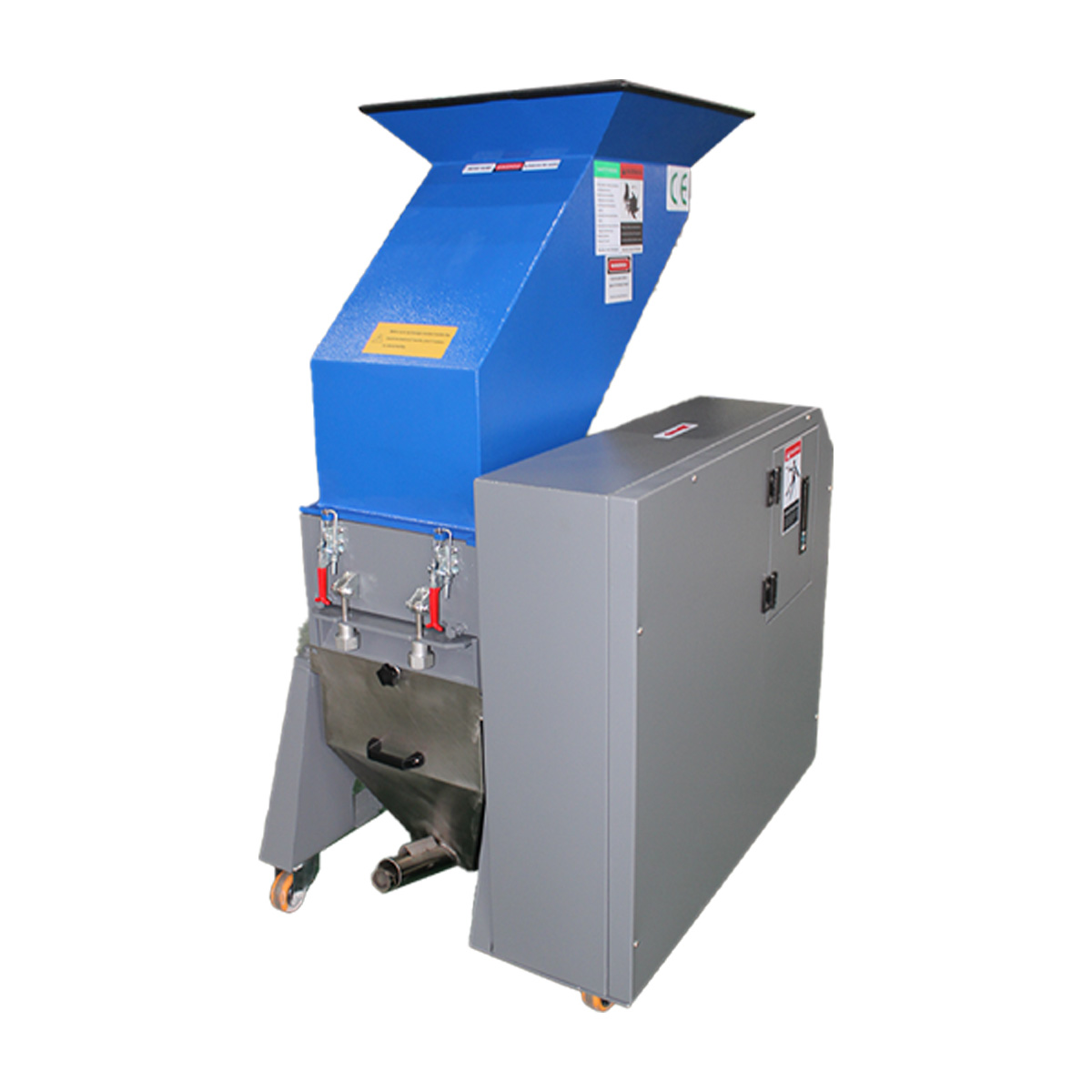

01 / EQUIPMENT VIEWS
A closer look
Equipment appearance and accessories vary with configuration.
02 / DESIGN & APPLICATION
Design and
application features
The XMJ series combines a belt drive, scissor-action knives and an acoustic enclosure. Collection can use a blower, tray or storage bin, depending on the scrap and workflow in packaging, automotive-part production and related applications.
Acoustic enclosure
An enclosure surrounds the cutting area. Assess workshop noise for the actual configuration and conditions.
Belt drive
Inspect belt tension, drive components and fasteners in line with the equipment requirements.
Collection options
Choose a blower, collection tray or storage bin to connect with the next recovery stage.
03 / SPECIFICATIONS
Technical specifications
Scroll or swipe to compare models
| Model | XMJ 200/320 | XMJ 200/420 |
|---|---|---|
| Drive power (kW) | 3 | 4 |
| Number of rotating knives | 3*1 | 3*2 |
| Number of fixed knives | 2*1 | 2*1 |
| Rotor Diameter (mm) | 200 | 200 |
| Rotor working width (mm) | 316 | 416 |
| Feed inlet size (mm) | 510*530 | 610*530 |
| Cutting chamber size (mm) | 270*316 | 270*416 |
| Screen aperture (mm) | 8 | 8 |
| Weight (kg) | 280 | 350 |
| Dimensions (L*W*H mm) | 850*710*1430 | 850*830*1430 |
Supplied specifications are a selection reference. Confirm the model and configuration in the project documents. Capacity and noise depend on material and operating conditions.
LET’S DISCUSS YOUR PROCESS
Discuss equipment options
Share the material, feed dimensions and recovery requirements.
