Staggered claw knives
A staggered knife arrangement cuts material within the selected size and shape range.
XIAOMA / MATERIAL RECOVERY

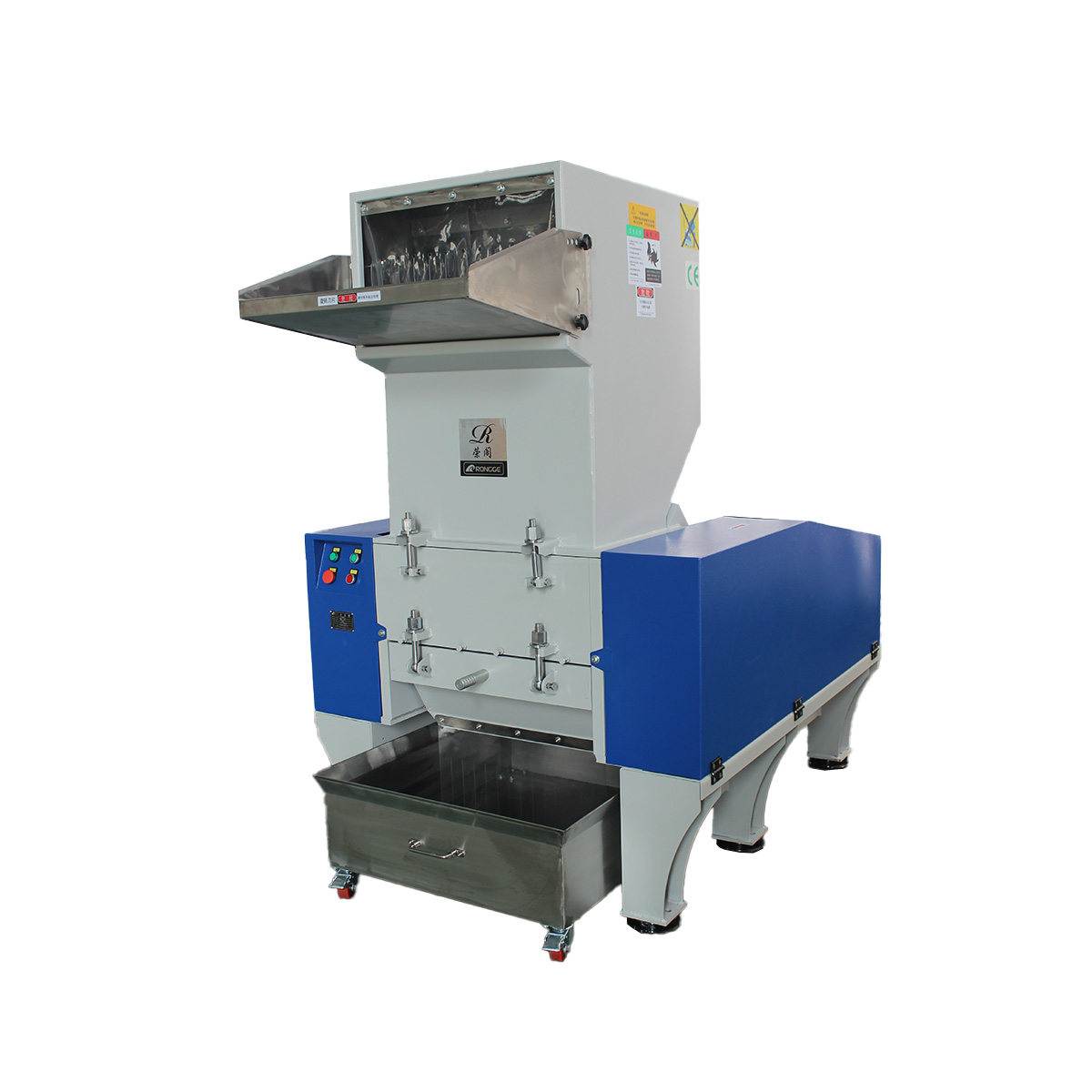

XMKClaw-knife granulator
A staggered claw-knife rotor and steel body for selected injection-moulding and blow-moulding scrap.
Discuss your material↗
PLASTIC RECOVERY SYSTEMSXIAOMA ↗
01 / EQUIPMENT VIEWS
A closer look
Equipment appearance and accessories vary with configuration.
02 / DESIGN & APPLICATION
Design and
application features
The XMK series combines a staggered claw-knife rotor, steel body and SKD11 knives for selected moulding scrap and plastic parts. Rotor knives allow adjustment and resharpening. Confirm cooling and electrical arrangements for the chosen model.
Knife adjustment
Rotor knives can be adjusted and resharpened. Recheck clearances and fasteners after maintenance.
Cooling arrangement
Discuss water circulation for the model in relation to operating temperature and material needs.
Drive maintenance

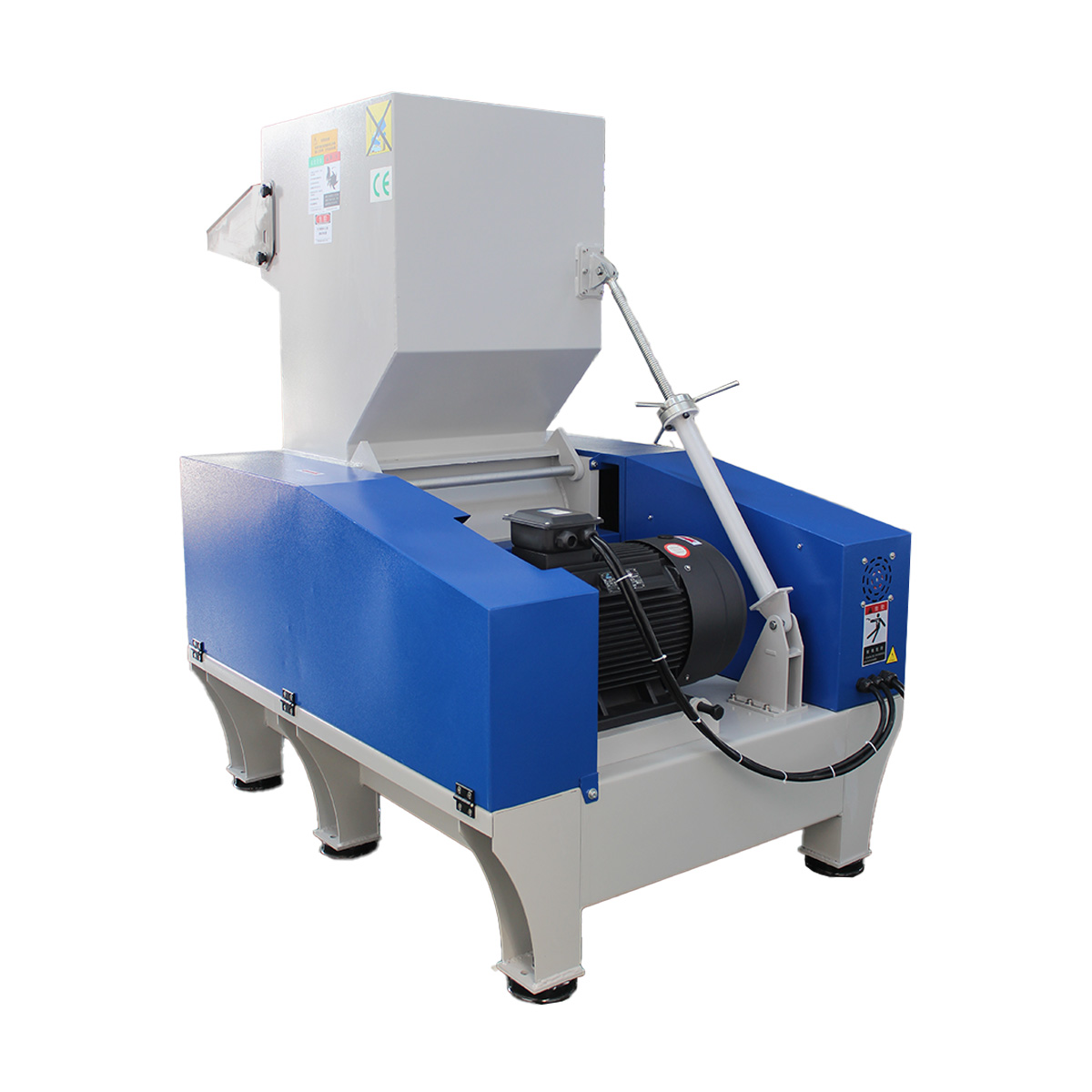

An externally mounted motor uses slotted mounts for belt-tension adjustment as specified.
03 / SPECIFICATIONS
Technical specifications
Scroll or swipe to compare models
| Model | XMK-20C | XMK-30C |
|---|---|---|
| Drive power (kW) | 15 | 22 |
| Number of rotating knives | 3*8 | 3*11 |
| Number of fixed knives | 2*1 | 2*2 |
| Rotational Speed (rpm) | 540 | 540 |
| Crushing Capacity (kg/h) | 300-400 | 500-800 |
| Cutting chamber size (mm) | 480*340 | 660*400 |
| Screen aperture (mm) | 10 | 10 |
| Weight (kg) | 1050 | 1500 |
| Dimensions (L*W*H mm) | 1850*1070*1770 | 2000*1300*1900 |
| Soundproof Model Dimensions (L*W*H mm) | 1800*1380*1850 | 1890*1550*2000 |
Supplied specifications are a selection reference. Confirm the model and configuration in the project documents. Capacity and noise depend on material and operating conditions.
