XMDHeavy-duty granulator
V-shaped cutting, external knife setting and outboard bearings for central plastic recovery.
Discuss your material↗
PLASTIC RECOVERY SYSTEMSXIAOMA ↗

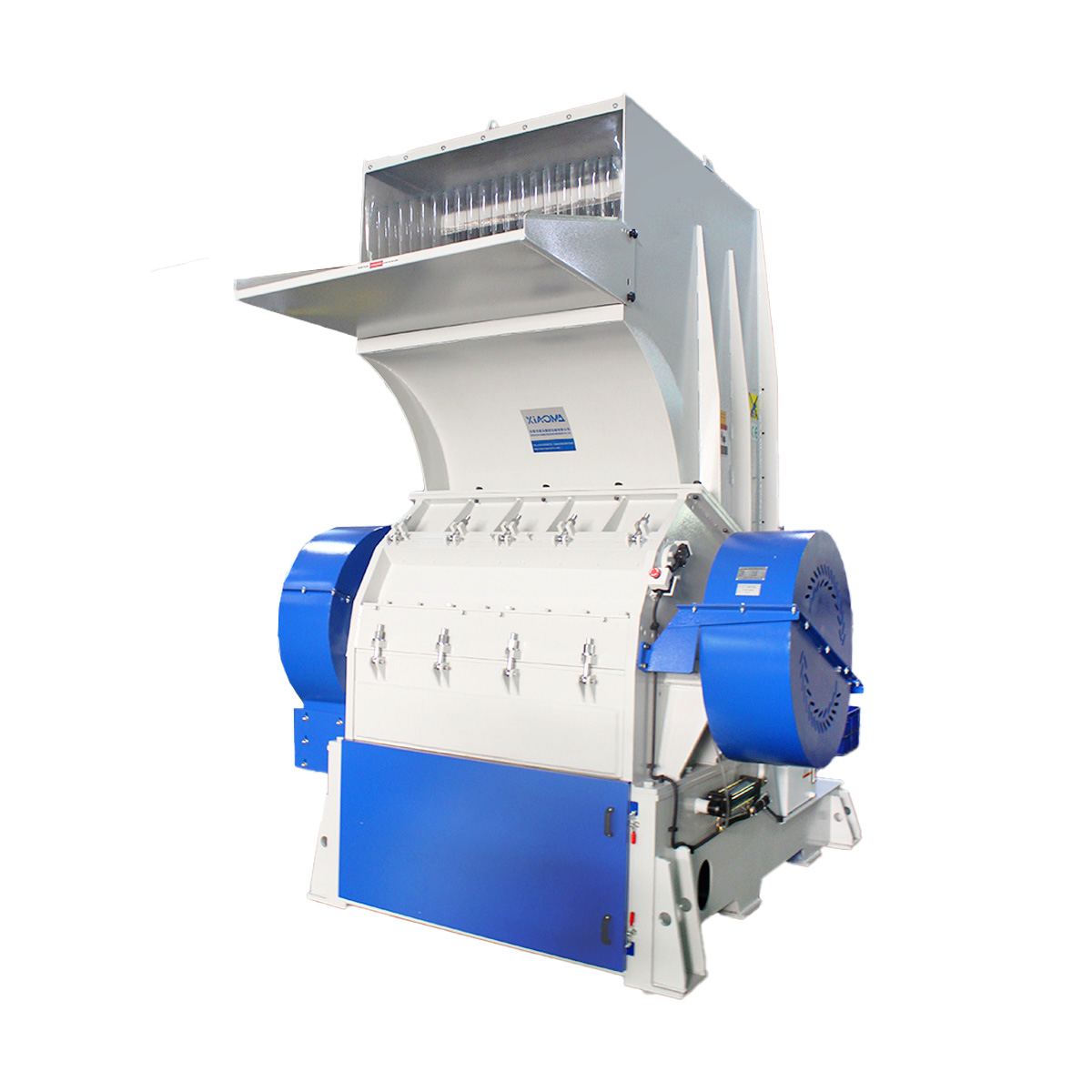

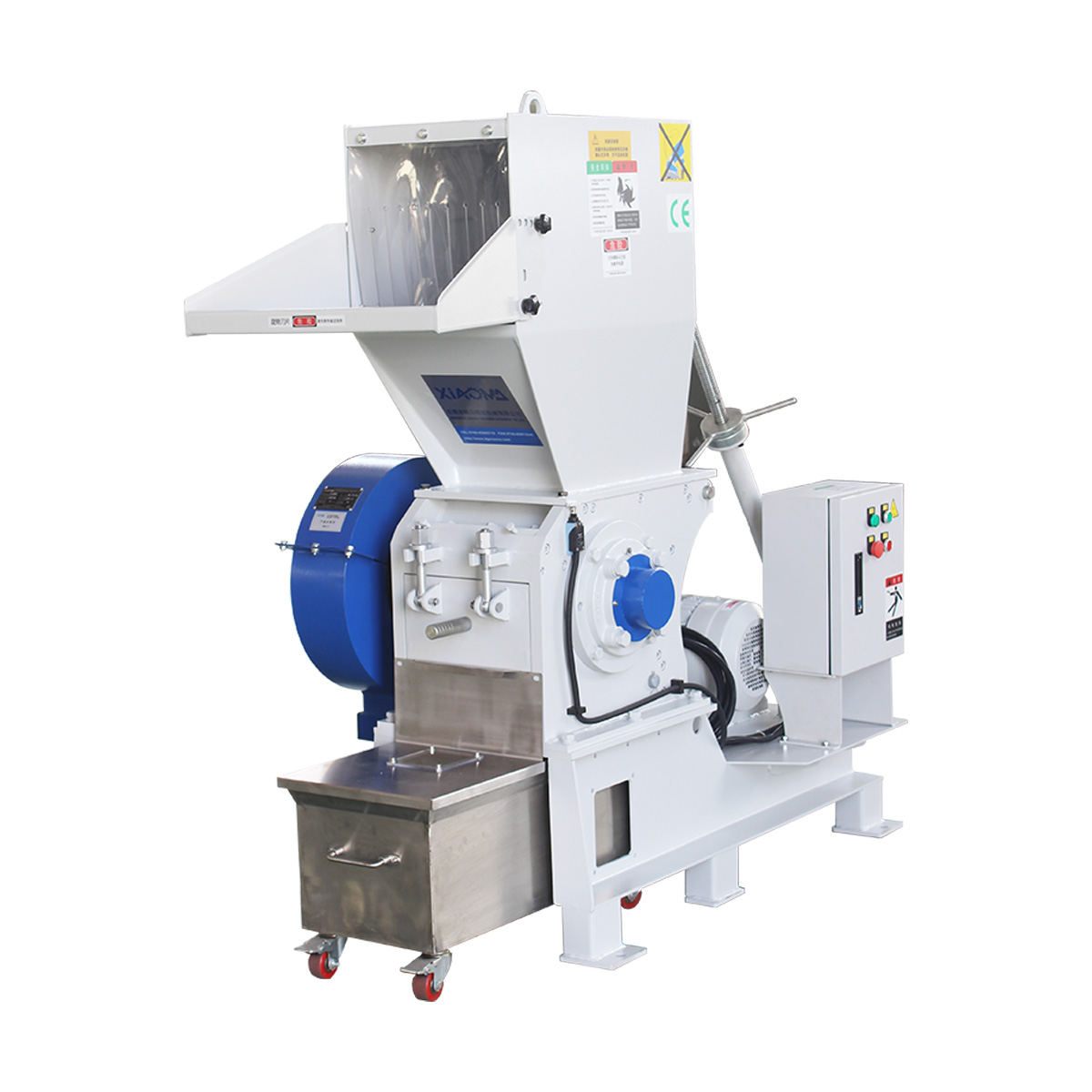

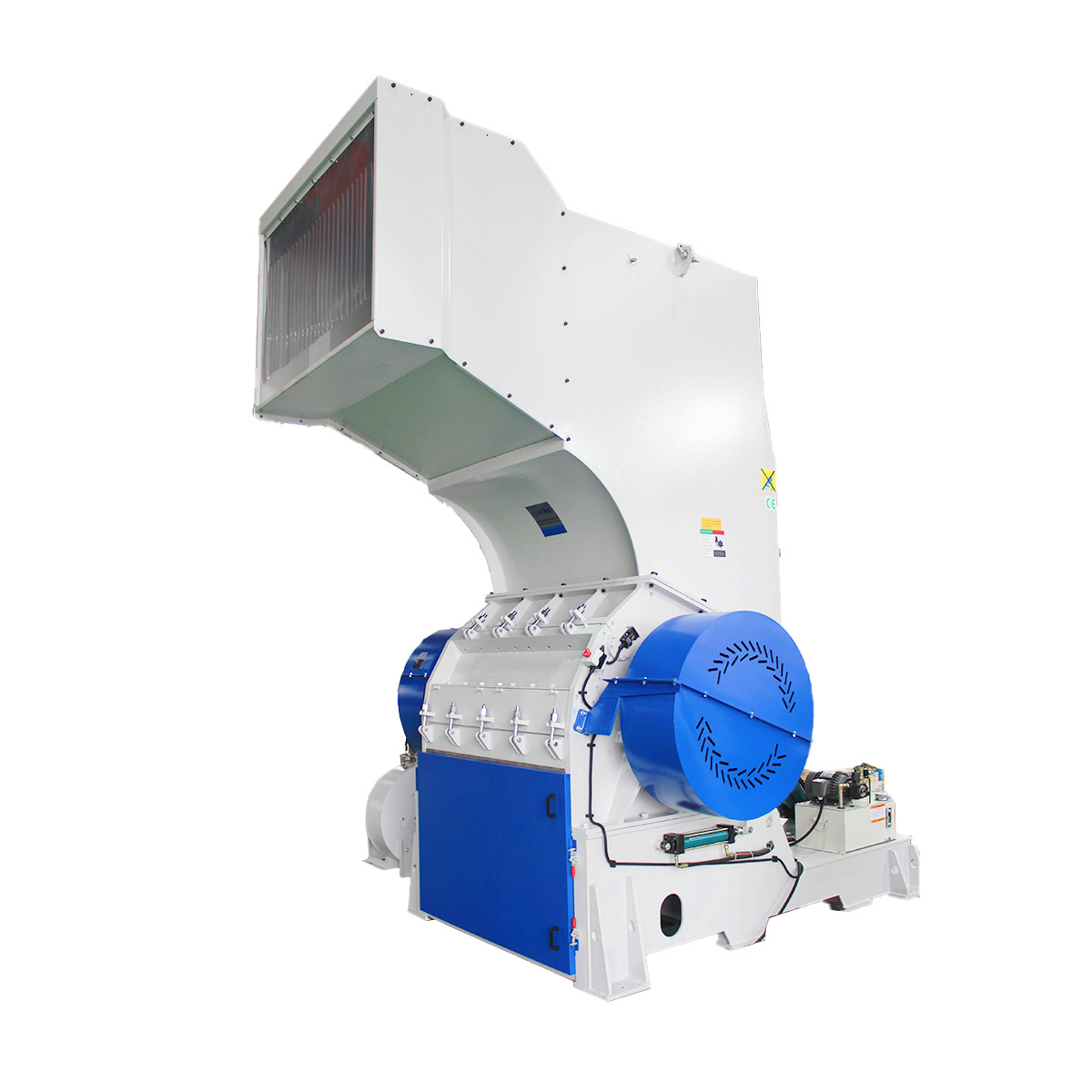

01 / EQUIPMENT VIEWS
A closer look
Equipment appearance and accessories vary with configuration.
02 / DESIGN & APPLICATION
Design and
application features
The XMD series uses V-shaped cutting and outboard bearings. Knives can use alloy tool steels such as D2 or DC53; confirm the grade, drive power and screen against the material and output requirements. Rotor and stationary knives can be preset in an external fixture.
External presetting
Adjust rotor and stationary knives in an external fixture before installation and checking.
V-shaped layout
Rotor knives guide material towards the central cutting area.
Outboard bearings
Bearings sit outside the cutting chamber for inspection and separation from material inside the chamber.
03 / SPECIFICATIONS
Technical specifications
Scroll or swipe to compare models
| Model | XMD300/300 | XMD300/600 | XMD300/800 | XMD400/600 | XMD400/800 | XMD400/1000 | XMD500/600 | XMD500/800 | XMD500/1000 | XMD500/1200 | XMD600/800 | XMD600/1100 | XMD800/1260 | XMD800/1600 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Drive power (kW) | 7.5 | 15 | 22 | 22 | 30 | 37 | 30 | 37 | 45 | 55 | 45 | 75 | 90 | 110 |
| Number of rotating knives | 3*1 | 3*2 | 3*2 | 3*2 | 3*2 | 3*2 | 3*2 | 5*2 | 5*2 | 5*2 | 5*2 | 5*2 | 5*2 | 5*2 |
| Number of fixed knives | 2*1 | 2*1 | 2*2 | 3*1 | 3*2 | 3*2 | 2*1 | 3*2 | 3*2 | 3*2 | 3*2 | 3*2 | 3*2 | 3*3 |
| Rotor Diameter (mm) | 300 | 300 | 300 | 400 | 400 | 400 | 500 | 500 | 500 | 500 | 600 | 600 | 800 | 800 |
| Rotor working width (mm) | 300 | 585 | 785 | 600 | 800 | 1000 | 600 | 800 | 1000 | 1200 | 800 | 1100 | 1260 | 1600 |
| Feed inlet size (mm) | 400*350 | 580*390 | 780*390 | 540*585 | 550*780 | 550*980 | 530*530 | 650*780 | 650*980 | 960*1190 | 790*780 | 790*1080 | 1280*1130 | 1140*1500 |
| Cutting chamber size (mm) | 370*300 | 370*585 | 370*785 | 490*600 | 490*800 | 490*1000 | 500*580 | 600*800 | 600*1000 | 600*1200 | 740*800 | 740*1100 | 1260*940 | 910*1600 |
| Screen aperture (mm) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Weight (kg) | 700 | 1100 | 1150 | 1700 | 2100 | 3200 | 1700 | 3150 | 4200 | 5000 | 4500 | 5500 | 7000 | 9300 |
| Dimensions (L*W*H mm) | 1750*800*1800 | 1870*1100*1900 | 1870*1350*1900 | 2240*1350*2250 | 2500*1550*2500 | 2100*1800*2500 | 2350*1200*2300 | 2800*1800*2500 | 2800*2000*2900 | 2800*2200*2900 | 3200*1800*3300 | 3200*2200*3300 | 3300*2500*3840 | 3100*2800*4200 |
Supplied specifications are a selection reference. Confirm the model and configuration in the project documents. Capacity and noise depend on material and operating conditions.
