Acoustic enclosure
The cutting area is enclosed, with workshop noise management assessed around the installation.
XIAOMA / MATERIAL RECOVERY

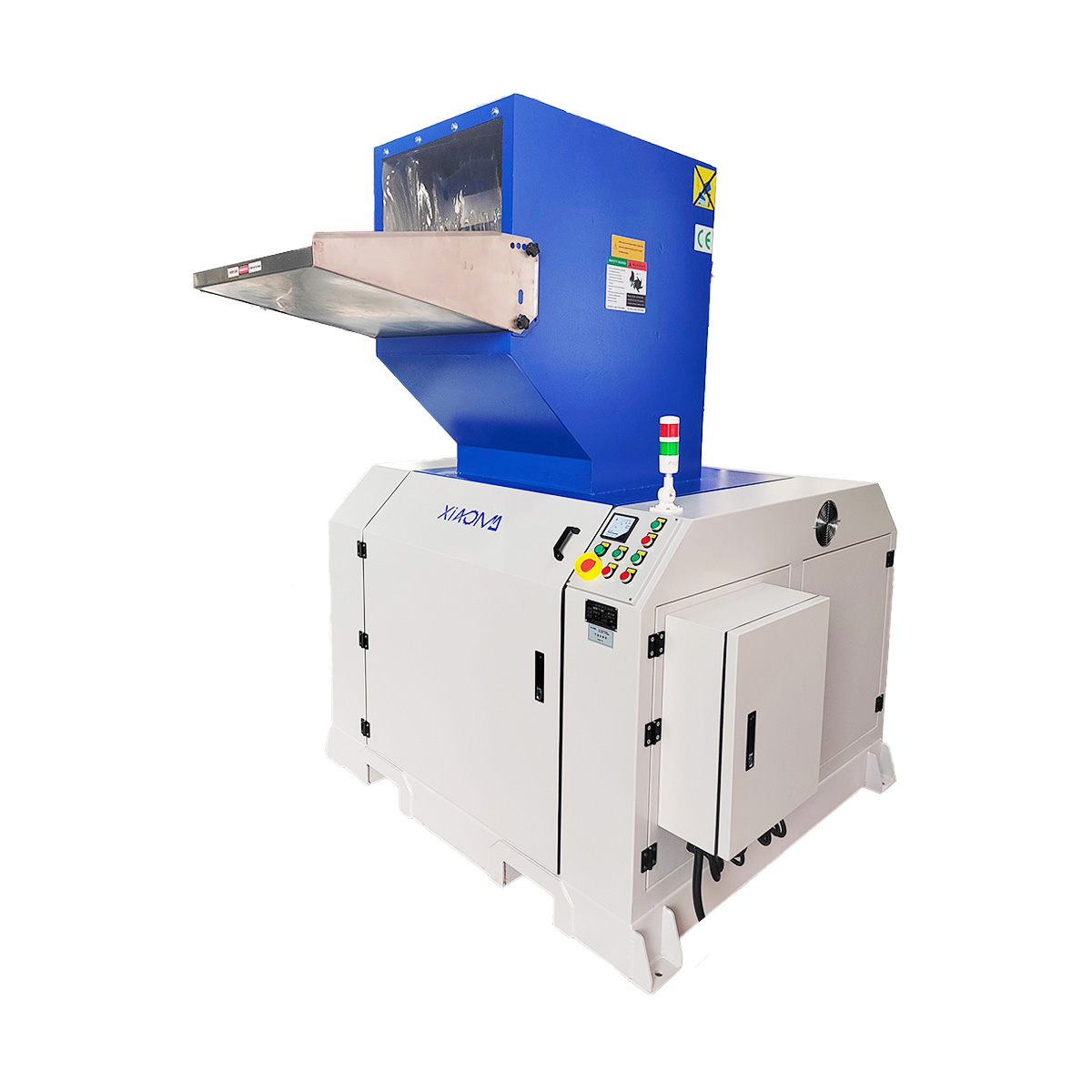

XMCAcoustic-enclosed granulator
Central granulation with considered cutting, collection and acoustic management, configured for the workshop.
Discuss your material↗
PLASTIC RECOVERY SYSTEMSXIAOMA ↗
01 / EQUIPMENT VIEWS

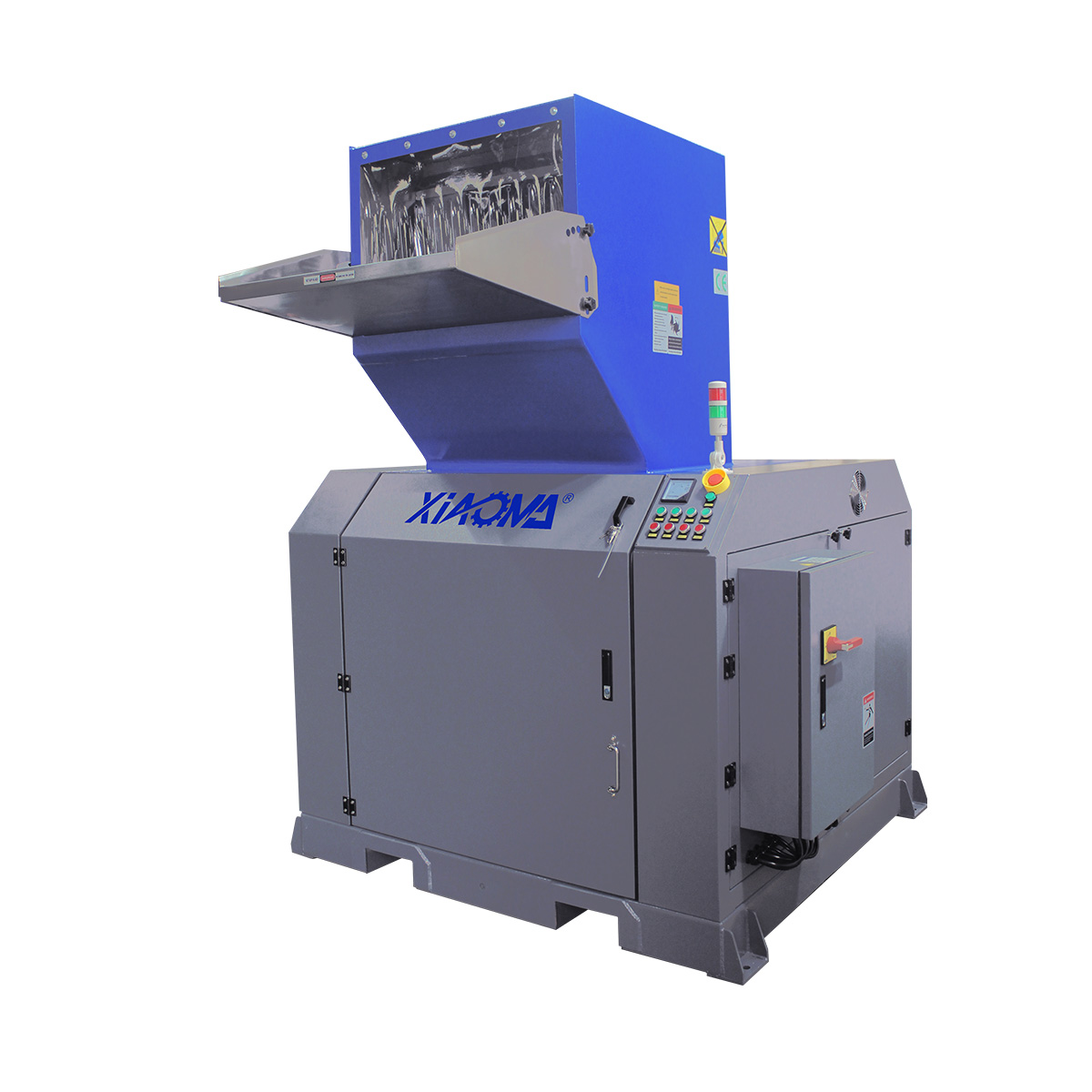

A closer look
Equipment appearance and accessories vary with configuration.
02 / DESIGN & APPLICATION
Design and
application features
The XMC series combines an acoustic enclosure with a V-shaped cutting arrangement for central recovery. Rotor and stationary knives can be preset outside the machine using an adjustment fixture. Conveyors, dust separation and metal detection can be discussed for the project.
External knife setting
Preset rotor and stationary knives on a fixture, then install and check clearances as specified.
V-shaped cutting
The knife arrangement guides material towards the rotor centre and works with the selected screen.

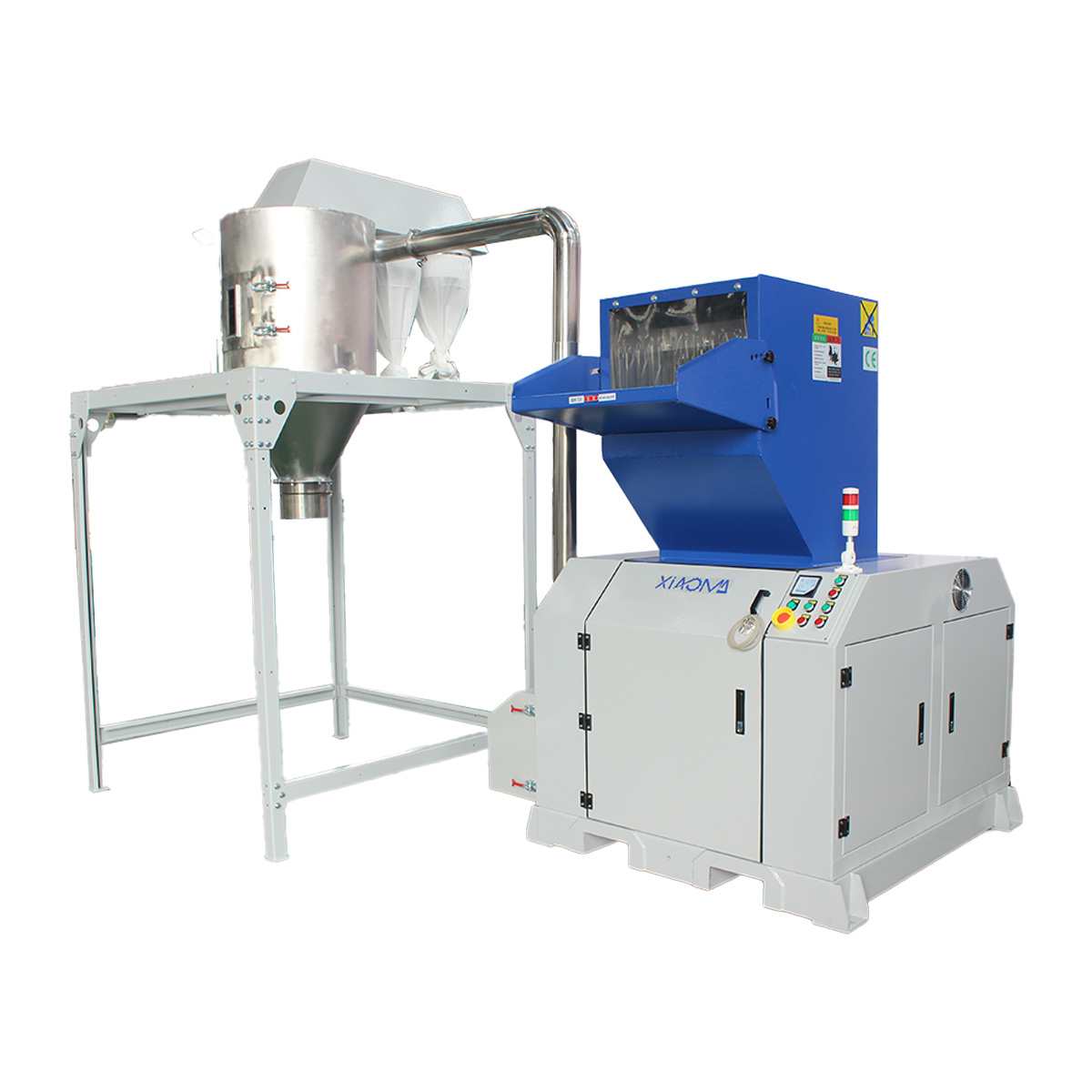

Auxiliary equipment
Discuss conveying, dust separation and metal detection to connect the surrounding process stages.
03 / SPECIFICATIONS
Technical specifications
Scroll or swipe to compare models
| Model | XMC300/300 | XMC300/600 | XMC300/800 | XMC350/500 | XMC400/600 | XMC400/800 | XMC500/600 | XMC500/800 | XMC500/1000 | XMC500/1200 |
|---|---|---|---|---|---|---|---|---|---|---|
| Drive power (kW) | 7.5 | 15 | 22 | 15 | 22 | 30 | 30 | 37 | 45 | 55 |
| Number of rotating knives | 3*1 | 3*2 | 3*2 | 3*2 | 3*2 | 3*2 | 3*2 | 5*2 | 5*2 | 5*2 |
| Number of fixed knives | 2*1 | 2*1 | 2*2 | 2*1 | 3*1 | 3*2 | 2*1 | 3*2 | 3*2 | 3*2 |
| Rotor Diameter (mm) | 300 | 300 | 300 | 350 | 400 | 400 | 500 | 500 | 500 | 500 |
| Rotor working width (mm) | 300 | 585 | 785 | 550 | 600 | 800 | 600 | 800 | 1000 | 1200 |
| Feed inlet size (mm) | 270*375 | 425*560 | 425*760 | 370*480 | 530*570 | 550*770 | 520*570 | 650*770 | 650*970 | 650*1190 |
| Cutting chamber size (mm) | 370*300 | 370*585 | 370*785 | 410*500 | 490*600 | 490*800 | 550*580 | 600*800 | 600*1000 | 600*1200 |
| Screen aperture (mm) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 12 | 12 | 12 |
| Weight (kg) | 1000 | 1250 | 1350 | 1010 | 1850 | 2200 | 1700 | 3300 | 4300 | 4800 |
| Dimensions (L*W*H mm) | 1750*1470*2100 | 1750*1760*2100 | 1900*1600*2250 | 1660*1174*1850 | 2100*1785*2300 | 2200*1800*2500 | 2350*1650*2300 | 3350*1910*2900 | 2800*1920*2900 | 2500*2400*2500 |
| Fan installation method | Machine-mounted or separate | Machine-mounted or separate | Machine-mounted or separate | Machine-mounted or separate | Machine-mounted or separate | Machine-mounted or separate | Machine-mounted or separate | Machine-mounted or separate | Machine-mounted or separate | Machine-mounted or separate |
Supplied specifications are a selection reference. Confirm the model and configuration in the project documents. Capacity and noise depend on material and operating conditions.
LET’S DISCUSS YOUR PROCESS
Discuss equipment options
Share the material, feed dimensions and recovery requirements.
