Screenless design
Tooth cutters process the material; confirm discharge characteristics using the intended material.
XIAOMA / MATERIAL RECOVERY
XMSSlow-speed tooth granulator
Screenless cutting for beside-the-press recovery of rigid plastic sprues, including selected ABS, PC and PMMA materials.
Discuss your material↗
PLASTIC RECOVERY SYSTEMSXIAOMA ↗
01 / EQUIPMENT VIEWS

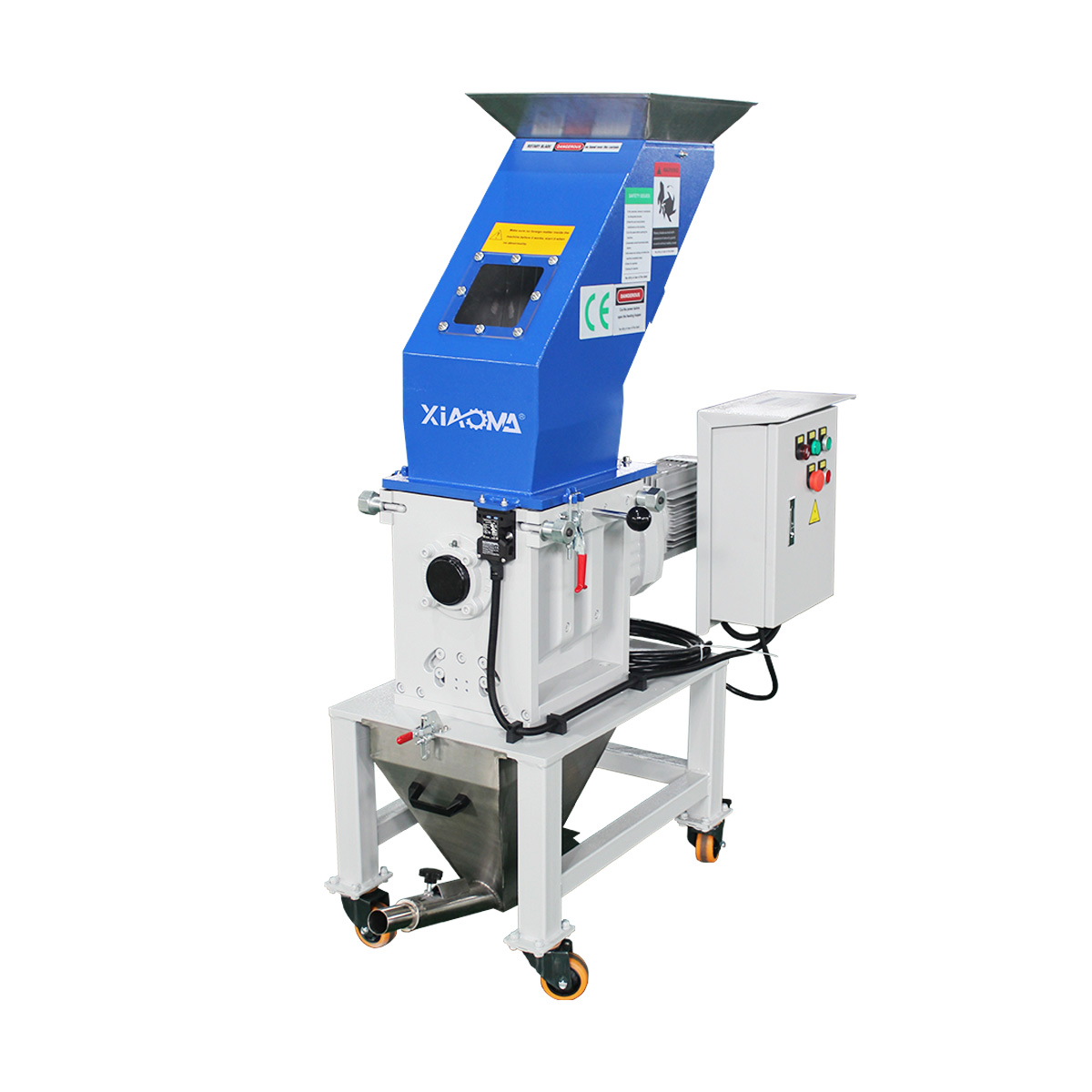

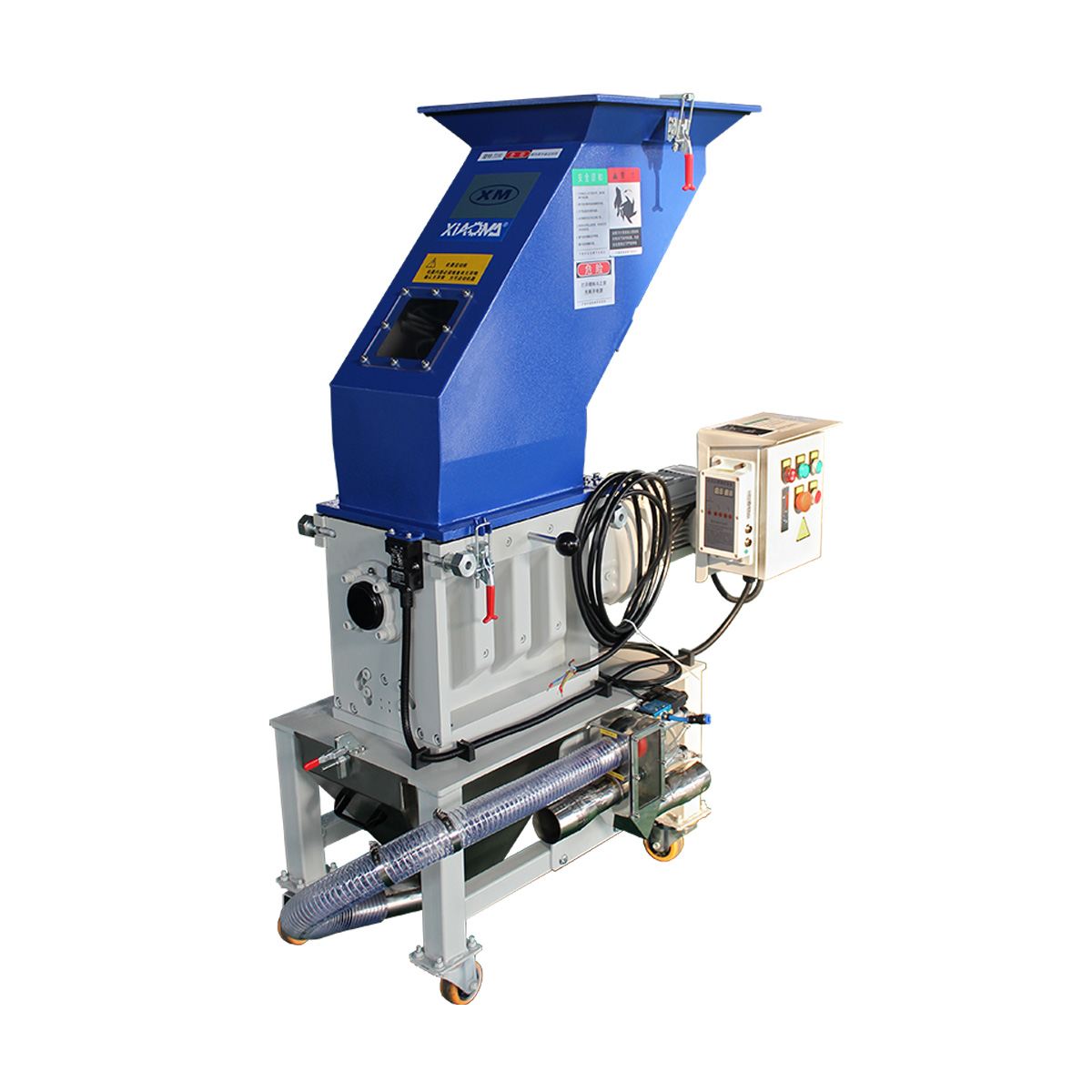

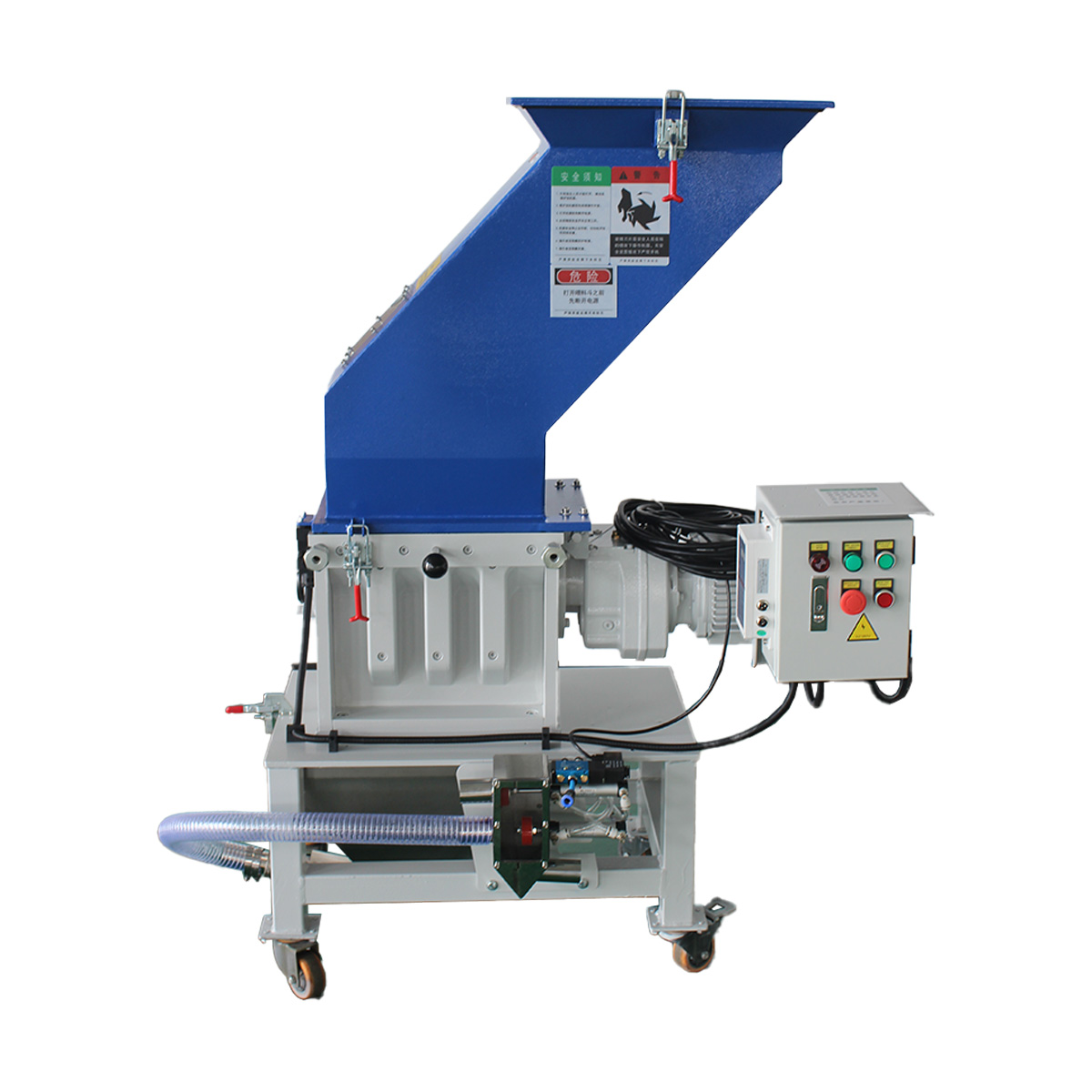

A closer look
Equipment appearance and accessories vary with configuration.
02 / DESIGN & APPLICATION
Design and
application features
The XMS series uses slow-speed tooth cutting without a screen for sprue recovery in injection moulding, including electronics, automotive parts and packaging. The openable body provides access for cleaning and inspection after shutdown.
Slow-speed rotor
A slow rotor and matched cutters serve selected rigid plastic sprues.
Openable body
Access supports cleaning, material changes and routine inspection in accordance with the manual.
Beside-the-press layout
Coordinate collection and reuse with the moulding cycle, material dimensions and available space.
03 / SPECIFICATIONS
Technical specifications
Scroll or swipe to compare models
| Model | XMS 250 | XMS 340 | XMS 360 | XMS 460 | XMS 560 |
|---|---|---|---|---|---|
| Drive power (kW) | 1.5 | 2.2 | 1.5 | 2.2 | 4 |
| Rotational speed (rpm) | 32 | 32 | 32 | 32 | 32 |
| Number of hook blades | 2 | 3 | 2 | 3 | 3 |
| Number of rotary blades | 3 | 4 | 3 | 4 | 4 |
| Cutting chamber size (mm) | 230*250 | 230*340 | 307*306 | 416*306 | 430*380 |
| Crushing capacity (kg) | >=10 | >=20 | >=10 | >=20 | >=30 |
| Crushing noise (dB) | 60-73 | 60-75 | 60-73 | 60-75 | 60-75 |
| Weight (kg) | 230 | 300 | 270 | 380 | 490 |
| Dimensions (L*W*H mm) | 930*500*1410 | 980*580*1410 | 1060*558*1361 | 1268*579*1363 | 1550*680*1460 |
Supplied specifications are a selection reference. Confirm the model and configuration in the project documents. Capacity and noise depend on material and operating conditions.
LET’S DISCUSS YOUR PROCESS
Discuss equipment options
Share the material, feed dimensions and recovery requirements.
