V-shaped knife layout
Staggered rotor knives guide material towards the centre of the cutting chamber.
XIAOMA / MATERIAL RECOVERY

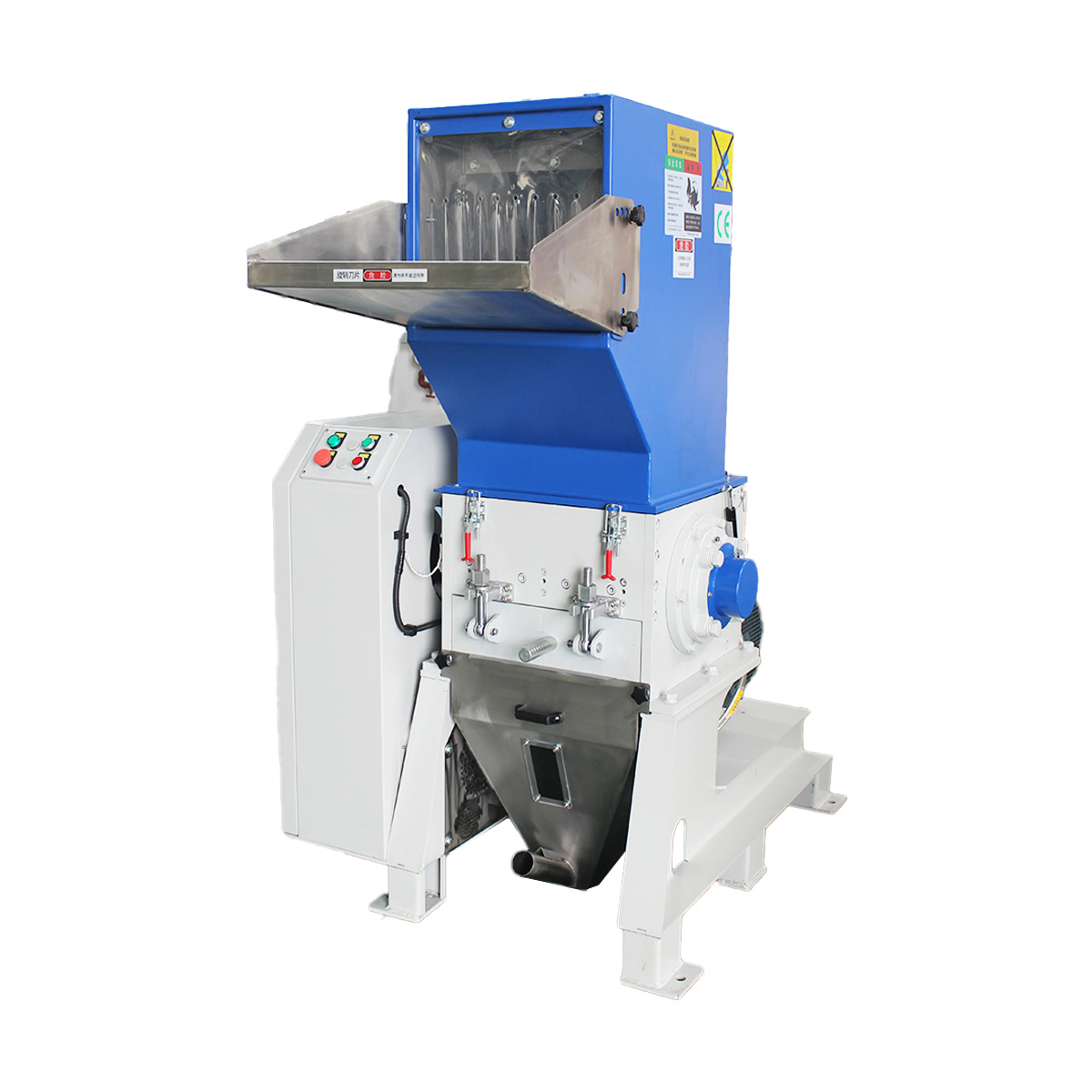

XMG300Medium low-speed granulator
Recovery for plastic bottles, blow-moulding trim and other hollow parts, configured around feed size and the production process.
Discuss your material↗
PLASTIC RECOVERY SYSTEMSXIAOMA ↗
01 / EQUIPMENT VIEWS

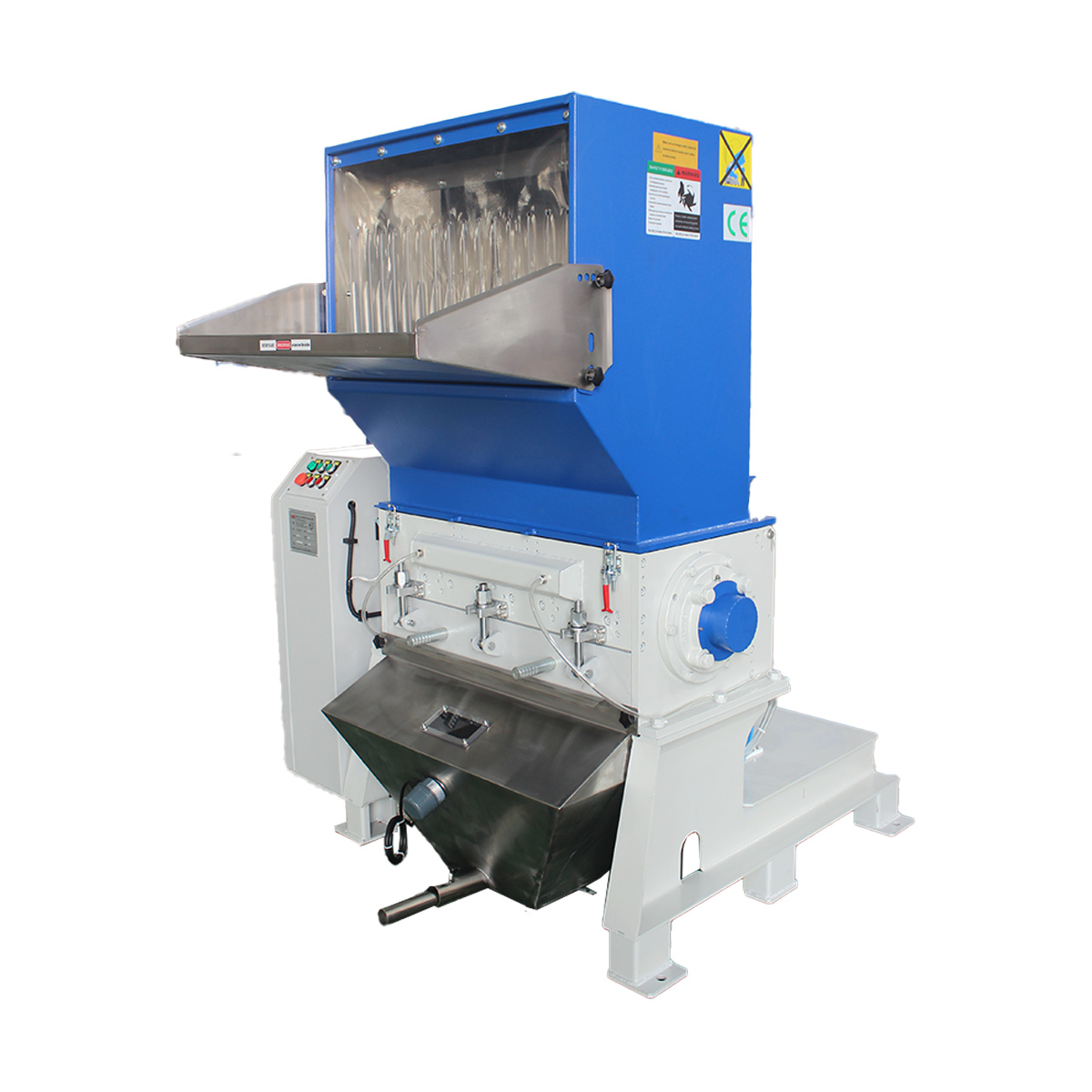

A closer look
Equipment appearance and accessories vary with configuration.
02 / DESIGN & APPLICATION
Design and
application features
The XMG300 series uses a V-shaped staggered rotor to granulate plastic bottles and other hollow blow-moulded parts. Selection should account for volume, wall thickness and feeding method, together with the required discharge arrangement.
Progressive engagement
The rotor layout allows knives to engage progressively and distribute the cutting load.
Hollow-part recovery
Suitable for selected bottles and blow-moulding trim; confirm feed size and wall thickness for the model.

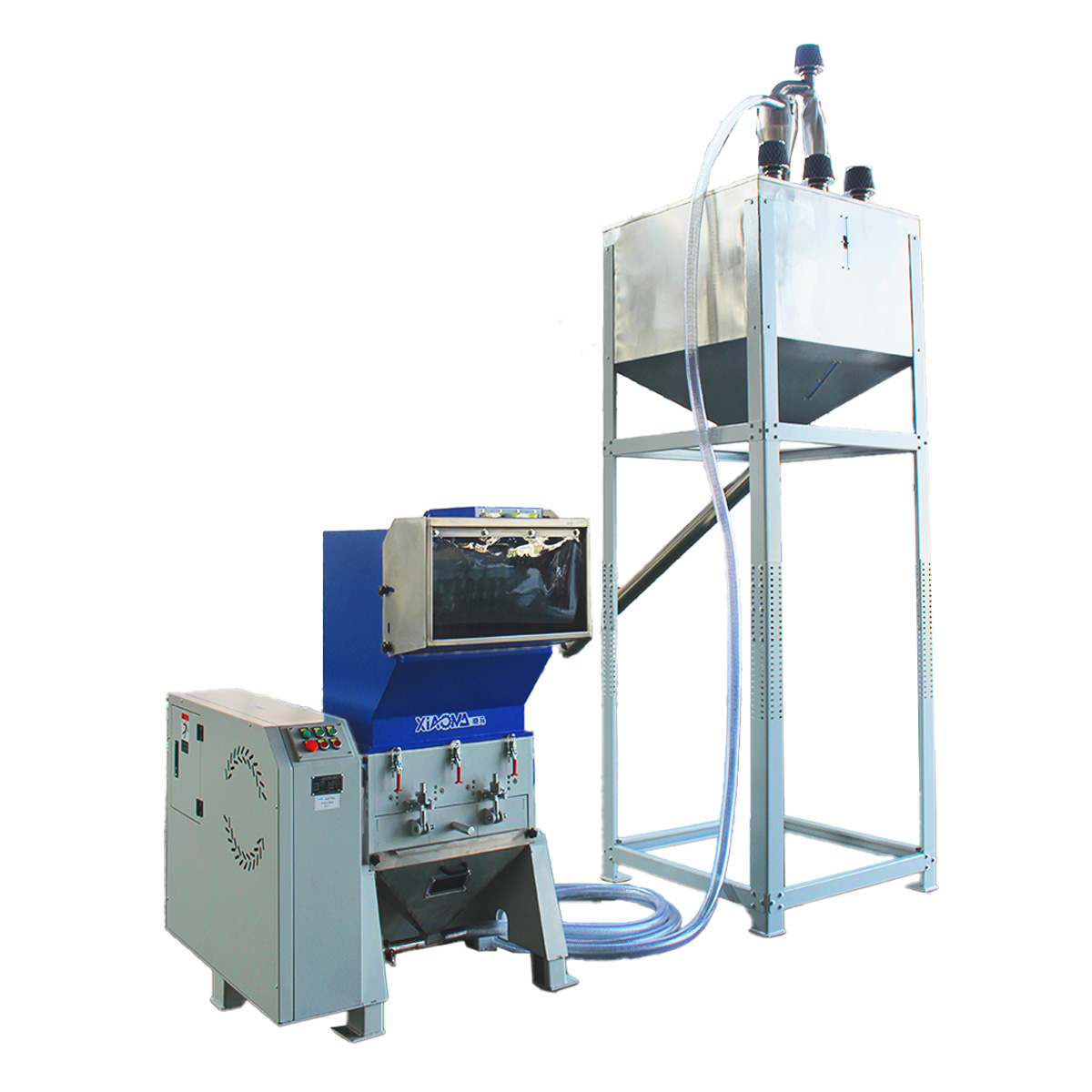

Process connections
Coordinate collection, a conveying blower and recovery connections with the line layout.
03 / SPECIFICATIONS
Technical specifications
Scroll or swipe to compare models
| Model | XMG 300/400 | XMG 300/600 | XMG 300/800 | XMG 400/800 |
|---|---|---|---|---|
| Drive power (kW) | 5.5 | 7.5 | 11 | 15 |
| Number of rotating knives | 33 | 48 | 66 | 63 |
| Number of fixed knives | 2(4 edges) | 4(4 edges) | 4(4 edges) | 2*2 |
| Rotor Diameter (mm) | 300 | 300 | 300 | 400 |
| Rotor working width (mm) | 400 | 600 | 800 | 800 |
| Feed inlet size (mm) | 420*330 | 610*330 | 840*630 | 800*490 |
| Cutting chamber size (mm) | 400*420 | 400*600 | 400*840 | 490*800 |
| Screen aperture (mm) | 8 | 8 | 8 | 10 |
| Weight (kg) | 770 | 930 | 1160 | 1823 |
| Dimensions (L*W*H mm) | 1600*980*1750 | 1600*1100*1600 | 1650*1320*2000 | 1500*1380*2200 |
Supplied specifications are a selection reference. Confirm the model and configuration in the project documents. Capacity and noise depend on material and operating conditions.
